Description

OVERVIEW

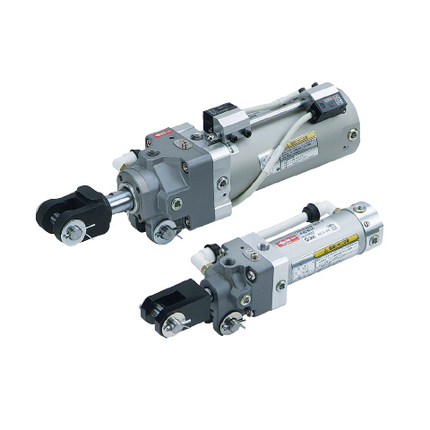

SMC's CLK2 series is?a perfect choice for holding applications in either a clamped or unclamped state.? CLK2 cylinders have a compact lock mechanism which minimizes the extension of the length dimension (2mm shorter), while maintaining the mounting interchangeability with the CLK1 existing product line.? The CLK2 is capable of being locked at any position within the entire stroke.? A dedicated solenoid valve is not required for unlocking, thus reducing the initial costs and replacement of the existing equipment.

Clamp cylinder that maintains the clamped and unclamped state during air source pressure drop and residual pressure exhaust (one-way lock)
Built-in cushion valve and plug eliminate protruding shape from the outer tube cover to improve workability

Specification item	model symbol	Specification information
emphysema	G	Built-in standard magnet type with magnetic field resistant auto switch
clevis width	A	16.5mm
tube inner diameter	50	tube inner diameter 50mm
port type	-	Rc
cylinder stroke	75	Cylinder stroke 75mm
tip bracket	YA	Double knuckle joint M6 with tap
option	-	doesn't exist
Lock direction	B	Reverse direction lock
Location of Port/Bypass Piping	-	Port location: Top; Bypass piping location: Left
Position of rod with switch	-	above/none
auto switch	P	Without auto switch Built-in magnet With switch With rod
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

Product form

OVERVIEW SMC's CLK2 series is?a perfect choice for holding applications in either a clamped or unclamped state.? CLK2 cylinders have... Read more

SKU: CLK2GA50-75YA-B-P

$380.28 Excl. VAT

Quick delivery worldwide

Satisfied or refunded

Secure payments Paypal

Shipped today? Order within: Mar 17, 2025 17:00:00 +0900
