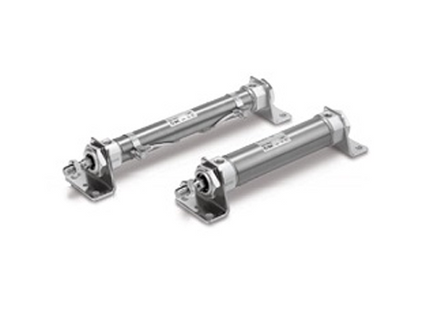

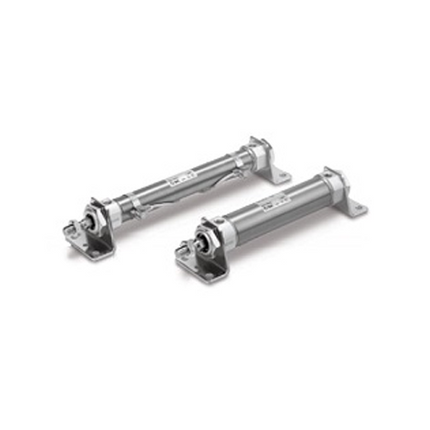

SMC CM2K-Z Series Air Cylinder, round body, Non-rotating, Double Acting, Single Rod, CDM2KBZ20-50Z-XC6

Description

OVERVIEW


  • Standardized rod end shape female thread
  • Improved auto switch operability, easy position adjustment
  • Single clevis, set rocking support bracket for trunnion
  • Set rod end bracket, swing bracket attached part number (reduces the trouble of ordering separately) )
  •  With auto switch (CDM2-Z series: CDM2, CDM2W, CDM2K, CDM2KW, CDM2R, CDM2RK)



Specification item model symbol Specification information
With auto switch D With auto switch
Mounting support type BZ Basic boss cut
tube inner diameter 20 tube inner diameter 20mm
cylinder stroke 50 cylinder stroke 50mm
Cylinder additional symbol - Rubber cushion, rod end male thread, no bellows
dual stroke mark - No dual stroke mark
cylinder stroke 2 - Cylinder stroke 2 None
Cylinder additional symbol 2 - Rubber cushion, rod end male thread, no bellows
rocking support bracket - no metal fittings
rod end bracket - no metal fittings
auto switch - Without auto switch
Auto switch additional symbol - 2 with or without
Custom made specifications XC6 material stainless steel

Product form

OVERVIEW Standardized rod end shape female thread Improved auto switch operability, easy position adjustment Single clevis, set rocking support bracket... Read more

SKU: CDM2KBZ20-50Z-XC6

$44.54 Excl. VAT

    • Quick delivery worldwide
    • Satisfied or refunded
    • Secure payments Paypal

      Description

      OVERVIEW


      • Standardized rod end shape female thread
      • Improved auto switch operability, easy position adjustment
      • Single clevis, set rocking support bracket for trunnion
      • Set rod end bracket, swing bracket attached part number (reduces the trouble of ordering separately) )
      •  With auto switch (CDM2-Z series: CDM2, CDM2W, CDM2K, CDM2KW, CDM2R, CDM2RK)



      Specification item model symbol Specification information
      With auto switch D With auto switch
      Mounting support type BZ Basic boss cut
      tube inner diameter 20 tube inner diameter 20mm
      cylinder stroke 50 cylinder stroke 50mm
      Cylinder additional symbol - Rubber cushion, rod end male thread, no bellows
      dual stroke mark - No dual stroke mark
      cylinder stroke 2 - Cylinder stroke 2 None
      Cylinder additional symbol 2 - Rubber cushion, rod end male thread, no bellows
      rocking support bracket - no metal fittings
      rod end bracket - no metal fittings
      auto switch - Without auto switch
      Auto switch additional symbol - 2 with or without
      Custom made specifications XC6 material stainless steel
