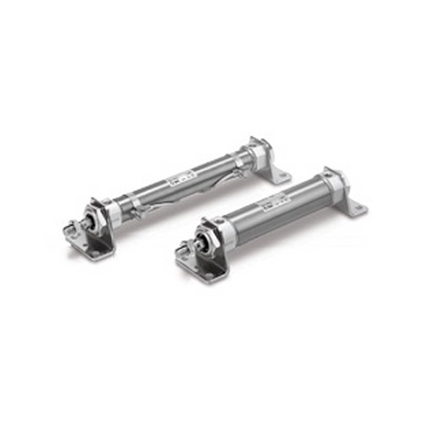

Name: SMC CM2K-Z Series Air Cylinder, round body, Non-rotating, Double Acting, Single Rod, CM2KB40-100Z
Brand: SMC
SKU: CM2KB40-100Z
Price: 69.76 USD
Availability: InStock

SMC CM2K-Z Series Air Cylinder, round body, Non-rotating, Double Acting, Single Rod, CM2KB40-100Z

VendorSMC

Description

OVERVIEW

Standardized rod end shape female thread
Improved auto switch operability, easy position adjustment
Single clevis, set rocking support bracket for trunnion
Set rod end bracket, swing bracket attached part number (reduces the trouble of ordering separately) )
With auto switch (CDM2-Z series: CDM2, CDM2W, CDM2K, CDM2KW, CDM2R, CDM2RK)

Specification item	model symbol	Specification information
With auto switch	-	Without auto switch
Mounting support type	B	Basic type (with bosses on both sides)
tube inner diameter	32	Bore size 32mm
cylinder stroke	75	Cylinder stroke 75mm
Cylinder additional symbol	-	Rubber cushion, rod end male thread, no bellows
dual stroke mark	-	No dual stroke mark
cylinder stroke 2	-	Cylinder stroke 2 None
Cylinder additional symbol 2	-	Rubber cushion, rod end male thread, no bellows
rocking support bracket	-	no metal fittings
rod end bracket	-	no metal fittings
auto switch	-	Without auto switch
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

Specification — CM2KB40-100Z

Bore	40mm
Stroke	100mm
Auto switch	Without auto switch
Weight	850 g

Specification values above are for model code CM2KB40-100Z as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
