Description

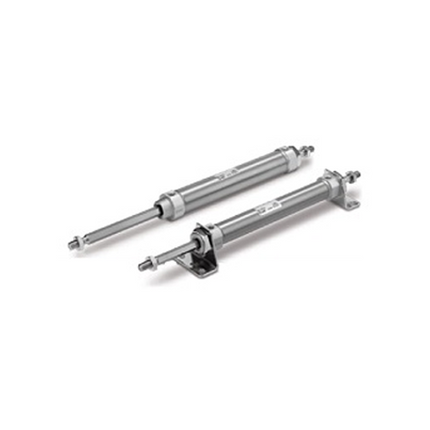

SMC CDM2KWB40-75Z — CM2KW-Z Series Air Cylinder, round body, Non-Rot, Double Acting, Double Rod. This code specifies 40mm bore, 75mm stroke, double acting, without auto switch.
Specification — CDM2KWB40-75Z
| Bore |
40mm |
| Stroke |
75mm |
| Cushion |
Rubber bumper |
| Auto switch |
Without auto switch |
| Port size |
1/4 |
| Fluid |
Air |
| Action |
Double acting |
| Port thread |
Rc |
| Rod end male thread |
M14X1.5 |
| Min. operating pressure |
0.08 MPa |
| Max. operating pressure |
1.0 MPa |
| Proof pressure |
1.5 MPa |
| Ambient temp. min |
-10 ℃ |
| Ambient temp. max |
60 ℃ |
| Lubrication |
Non-lube |
| Piston speed min |
50 mm/s |
| Weight |
941 g |
Specification values above are for model code CDM2KWB40-75Z as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
About the SMC CM2KW-Z series
- Standardized rod end shape female thread
- Improved auto switch operability, easy position adjustment
- Single clevis, swing support bracket for trunnion set
- Rod end bracket, swing bracket attachment part number set (reduces the trouble of ordering separately) )
- With auto switch (CDM2-Z series: CDM2, CDM2W, CDM2K, CDM2KW, CDM2R, CDM2RK)
Supply from Korea
Genuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.
