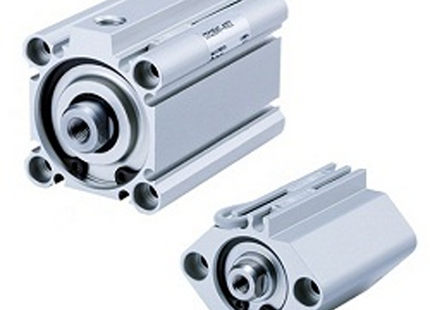

SMC CQ2B20-15D cyl, compact, CQ2 COMPACT CYLINDER

Description





OVERVIEW

SMC has redesigned the CQ2 compact cylinder with a new body, making it possible to mount auto switches on any of the 4 surfaces, depending on the installation conditions. Auto switch mounting grooves have replaced the CQ2s mounting rails, preventing projection of auto switches and improving ease and safety of work.

  • Double acting, single rod, compact cylinder
  • Bore sizes *: 12, 16, 20, 25, 32, 40, 50, 63, 80, 100
  • Standard stroke range *: 5 to 100
  • Port threads: M *; Rc, NPT or G *
  • Auto switch capable

    Specification — CQ2B20-15D

    Magnet No built-in magnet
    Mounting Through hole (standard)
    Bore 20mm
    Stroke 15mm
    Body option Standard (rod end female thread)
    Auto switch Without auto switch
    Port size M5X0.8
    Fluid Air
    Action Double acting, single rod
    Min. operating pressure 0.05 MPa
    Max. operating pressure 1.0 MPa
    Proof pressure 1.5 MPa
    Lubrication Non-lube
    Rod end female thread M5X0.8
    Fluid temp. min -10 °C
    Fluid temp. max 70 °C
    Weight 94 g

    Specification values above are for model code CQ2B20-15D as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.

    Product form

        OVERVIEW SMC has redesigned the CQ2 compact cylinder with a new body, making it possible to mount auto... Read more

    SKU: CQ2B20-15D

    $24.89 Excl. VAT

      • Ships within 5–10 business days
      • Ships from South Korea
      • Export packing available
      • Worldwide shipping
      • Secure payments Paypal

      Description





      OVERVIEW

      SMC has redesigned the CQ2 compact cylinder with a new body, making it possible to mount auto switches on any of the 4 surfaces, depending on the installation conditions. Auto switch mounting grooves have replaced the CQ2s mounting rails, preventing projection of auto switches and improving ease and safety of work.

      • Double acting, single rod, compact cylinder
      • Bore sizes *: 12, 16, 20, 25, 32, 40, 50, 63, 80, 100
      • Standard stroke range *: 5 to 100
      • Port threads: M *; Rc, NPT or G *
      • Auto switch capable

        Specification — CQ2B20-15D

        Magnet No built-in magnet
        Mounting Through hole (standard)
        Bore 20mm
        Stroke 15mm
        Body option Standard (rod end female thread)
        Auto switch Without auto switch
        Port size M5X0.8
        Fluid Air
        Action Double acting, single rod
        Min. operating pressure 0.05 MPa
        Max. operating pressure 1.0 MPa
        Proof pressure 1.5 MPa
        Lubrication Non-lube
        Rod end female thread M5X0.8
        Fluid temp. min -10 °C
        Fluid temp. max 70 °C
        Weight 94 g

        Specification values above are for model code CQ2B20-15D as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
