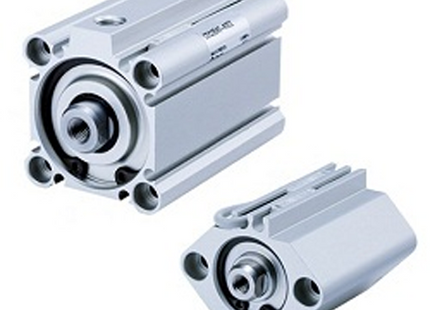

SMC CQ2B25-20D Compact Cylinder With Through-Hole, Standard Mounting, Bore Size 25 mm

Description





OVERVIEW

SMC has redesigned the CQ2 compact cylinder with a new body, making it possible to mount auto switches on any of the 4 surfaces, depending on the installation conditions. Auto switch mounting grooves have replaced the CQ2s mounting rails, preventing projection of auto switches and improving ease and safety of work.

  • Double acting, single rod, compact cylinder
  • Bore sizes *: 12, 16, 20, 25, 32, 40, 50, 63, 80, 100
  • Standard stroke range *: 5 to 100
  • Port threads: M *; Rc, NPT or G *
  • Auto switch capable


        SPECIFICATIONS


        Compact Cylinder Type Standard
        Bore Diameter 25 mm
        Stroke 20 mm
        Piston Action Double-Acting
        Mounting Type Through Hole
        Rod Type Single Rod
        Rod Size / Thread M10x1.25 Female ISO
        Port Size M5x0.8
        Cushion Type None
        Proof Pressure +1.5 Mpa
        Operating Pressure Range +0.05 to +1 Mpa
        Push Force at 100 psi 344 N

        Specification — CQ2B25-20D

        Magnet No built-in magnet
        Mounting Through hole (standard)
        Bore 25mm
        Stroke 20mm
        Body option Standard (rod end female thread)
        Auto switch Without auto switch
        Port size M5X0.8
        Fluid Air
        Action Double acting, single rod
        Min. operating pressure 0.05 MPa
        Max. operating pressure 1.0 MPa
        Proof pressure 1.5 MPa
        Lubrication Non-lube
        Rod end female thread M6X1.0
        Fluid temp. min -10 °C
        Fluid temp. max 70 °C
        Weight 135 g

        Specification values above are for model code CQ2B25-20D as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.

        Product form

            OVERVIEW SMC has redesigned the CQ2 compact cylinder with a new body, making it possible to mount auto... Read more

        SKU: CQ2B25-20D

        $29.14 Excl. VAT

          • Ships within 5–10 business days
          • Ships from South Korea
          • Export packing available
          • Worldwide shipping
          • Secure payments Paypal

          Description





          OVERVIEW

          SMC has redesigned the CQ2 compact cylinder with a new body, making it possible to mount auto switches on any of the 4 surfaces, depending on the installation conditions. Auto switch mounting grooves have replaced the CQ2s mounting rails, preventing projection of auto switches and improving ease and safety of work.

          • Double acting, single rod, compact cylinder
          • Bore sizes *: 12, 16, 20, 25, 32, 40, 50, 63, 80, 100
          • Standard stroke range *: 5 to 100
          • Port threads: M *; Rc, NPT or G *
          • Auto switch capable


                SPECIFICATIONS


                Compact Cylinder Type Standard
                Bore Diameter 25 mm
                Stroke 20 mm
                Piston Action Double-Acting
                Mounting Type Through Hole
                Rod Type Single Rod
                Rod Size / Thread M10x1.25 Female ISO
                Port Size M5x0.8
                Cushion Type None
                Proof Pressure +1.5 Mpa
                Operating Pressure Range +0.05 to +1 Mpa
                Push Force at 100 psi 344 N

                Specification — CQ2B25-20D

                Magnet No built-in magnet
                Mounting Through hole (standard)
                Bore 25mm
                Stroke 20mm
                Body option Standard (rod end female thread)
                Auto switch Without auto switch
                Port size M5X0.8
                Fluid Air
                Action Double acting, single rod
                Min. operating pressure 0.05 MPa
                Max. operating pressure 1.0 MPa
                Proof pressure 1.5 MPa
                Lubrication Non-lube
                Rod end female thread M6X1.0
                Fluid temp. min -10 °C
                Fluid temp. max 70 °C
                Weight 135 g

                Specification values above are for model code CQ2B25-20D as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
