Description

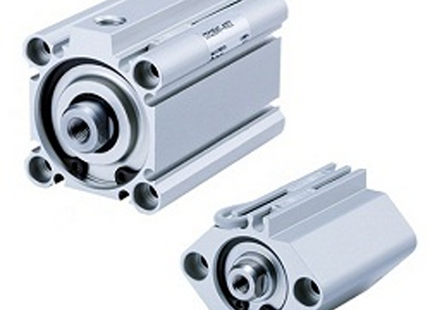

SMC has redesigned the CQ2 compact cylinder with a new body, making it possible to mount auto switches on any of the 4 surfaces, depending on the installation conditions. Auto switch mounting grooves have replaced the CQ2s mounting rails, preventing projection of auto switches and improving ease and safety of work.
- Double acting, single rod, compact cylinder
- Bore sizes *: 12, 16, 20, 25, 32, 40, 50, 63, 80, 100
- Standard stroke range *: 5 to 100
- Port threads: M *; Rc, NPT or G *
- Auto switch capable
Specification — CQ2B63-10DCMZ
| Magnet |
No built-in magnet |
| Mounting |
Through hole (standard) |
| Bore |
63mm |
| Stroke |
10mm |
| Body option |
With rubber bumper, rod end male thread |
| Auto switch |
Without auto switch |
| Port size |
1/4 |
| Fluid |
Air |
| Action |
Double acting, single rod |
| Rod end male thread |
M18X1.5 |
| Min. operating pressure |
0.05 MPa |
| Max. operating pressure |
1.0 MPa |
| Proof pressure |
1.5 MPa |
| Lubrication |
Non-lube |
| Ambient temp. min |
-10 °C |
| Ambient temp. max |
70 °C |
| Weight |
566 g |
Specification values above are for model code CQ2B63-10DCMZ as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
