Description

OVERVIEW

A space-saving cylinder designed with a thin overall length to realize compact equipment
Small auto switches can be attached to 4 surfaces (2 surfaces for ø12 to ø25).
There is no protruding auto switch.
Light weight: reduced by 5~13% (compared to the previous CQ2)
Newly added support bracket for double clevis and compact foot type bracket
Enclosed installation bolt and set the part number for rod end bracket attachment (reducing the trouble of ordering separately)
With auto switch (CDQ2 series: CDQ2, CDQ2W, CDQ2K, CDQ2KW, CDQP2, CDQ2 S, CDBQ2)

Specification item	model symbol	Specification information
built-in magnet	D	built-in magnet
installation support	B	Through hole (standard)
tube inner diameter	20	tube inner diameter 20mm
Types of port screws	-	Rc/M screw
cylinder stroke	10	cylinder stroke 10mm
dual stroke mark	-	No dual stroke mark
cylinder stroke 2	-	Cylinder stroke 2 None
body options	-	Standard (rod end female thread)
Auto switch mounting groove	Z	ø12-ø25 2 sides / ø32-ø63 4 sides
auto switch	A93	Reed auto switch, grommet, with light, 2-wire type, lateral entry, lead wire 0.5 m, applied voltage: DC24V, AC100V
Auto switch additional symbol	S	1 attached
Custom made specifications	-	standard

Product form

OVERVIEW A space-saving cylinder designed with a thin overall length to realize compact equipment Small auto switches can be attached... Read more

SKU: CDQ2KB20-10DZ-A93S

$88.37 Excl. VAT

Quick delivery worldwide

Satisfied or refunded

Secure payments Paypal

Description

OVERVIEW

A space-saving cylinder designed with a thin overall length to realize compact equipment
Small auto switches can be attached to 4 surfaces (2 surfaces for ø12 to ø25).
There is no protruding auto switch.
Light weight: reduced by 5~13% (compared to the previous CQ2)
Newly added support bracket for double clevis and compact foot type bracket
Enclosed installation bolt and set the part number for rod end bracket attachment (reducing the trouble of ordering separately)
With auto switch (CDQ2 series: CDQ2, CDQ2W, CDQ2K, CDQ2KW, CDQP2, CDQ2 S, CDBQ2)

Specification item	model symbol	Specification information
built-in magnet	D	built-in magnet
installation support	B	Through hole (standard)
tube inner diameter	20	tube inner diameter 20mm
Types of port screws	-	Rc/M screw
cylinder stroke	10	cylinder stroke 10mm
dual stroke mark	-	No dual stroke mark
cylinder stroke 2	-	Cylinder stroke 2 None
body options	-	Standard (rod end female thread)
Auto switch mounting groove	Z	ø12-ø25 2 sides / ø32-ø63 4 sides
auto switch	A93	Reed auto switch, grommet, with light, 2-wire type, lateral entry, lead wire 0.5 m, applied voltage: DC24V, AC100V
Auto switch additional symbol	S	1 attached
Custom made specifications	-	standard

Reviews

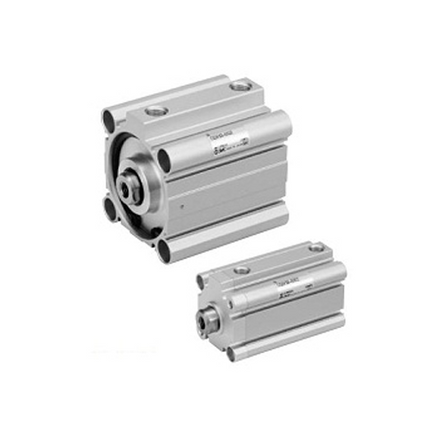

Name: SMC CQ2K-Z Series, Non-Rotating Rod Type. Double Acting , Single Rod, CDQ2KB20-10DZ-A93S
Brand: SMC
SKU: CDQ2KB20-10DZ-A93S
Price: 88.37 USD

SMC CQ2K-Z Series, Non-Rotating Rod Type. Double Acting , Single Rod, CDQ2KB20-10DZ-A93S
