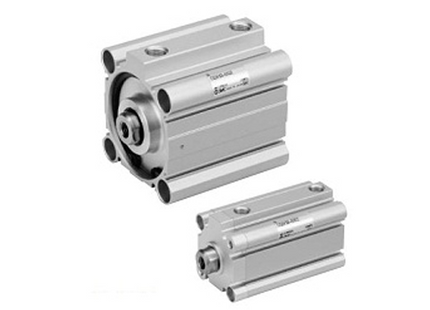

SMC CQ2K-Z Series, Non-Rotating Rod Type. Double Acting , Single Rod, CQ2KB25-35DM

Description

OVERVIEW


  •  A space-saving cylinder designed with a thin overall length to realize compact equipment
  • Small auto switches can be attached to 4 surfaces (2 surfaces for ø12 to ø25).
  • There is no protruding auto switch.
  • Light weight: reduced by 5~13% (compared to the previous CQ2)
  • Newly added support bracket for double clevis and compact foot type bracket
  • Enclosed installation bolt and set the part number for rod end bracket attachment (reducing the trouble of ordering separately)
  • With auto switch (CDQ2 series: CDQ2, CDQ2W, CDQ2K, CDQ2KW, CDQP2, CDQ2 S, CDBQ2)



Specification item model symbol Specification information
built-in magnet - No built-in magnet
installation support B Through hole (standard)
tube inner diameter 25 tube inner diameter 25mm
Types of port screws - Rc/M screw
cylinder stroke 35 cylinder stroke 35mm
dual stroke mark - No dual stroke mark
cylinder stroke 2 - Cylinder stroke 2 None
body options M rod end male thread
Auto switch mounting groove - No auto switch mounting groove
auto switch - Without auto switch
Auto switch additional symbol - 2 with or without
Custom made specifications - standard

Product form

OVERVIEW  A space-saving cylinder designed with a thin overall length to realize compact equipment Small auto switches can be attached... Read more

SKU: CQ2KB25-35DM

$52.26 Excl. VAT

    • Quick delivery worldwide
    • Satisfied or refunded
    • Secure payments Paypal

      Description

      OVERVIEW


      •  A space-saving cylinder designed with a thin overall length to realize compact equipment
      • Small auto switches can be attached to 4 surfaces (2 surfaces for ø12 to ø25).
      • There is no protruding auto switch.
      • Light weight: reduced by 5~13% (compared to the previous CQ2)
      • Newly added support bracket for double clevis and compact foot type bracket
      • Enclosed installation bolt and set the part number for rod end bracket attachment (reducing the trouble of ordering separately)
      • With auto switch (CDQ2 series: CDQ2, CDQ2W, CDQ2K, CDQ2KW, CDQP2, CDQ2 S, CDBQ2)



      Specification item model symbol Specification information
      built-in magnet - No built-in magnet
      installation support B Through hole (standard)
      tube inner diameter 25 tube inner diameter 25mm
      Types of port screws - Rc/M screw
      cylinder stroke 35 cylinder stroke 35mm
      dual stroke mark - No dual stroke mark
      cylinder stroke 2 - Cylinder stroke 2 None
      body options M rod end male thread
      Auto switch mounting groove - No auto switch mounting groove
      auto switch - Without auto switch
      Auto switch additional symbol - 2 with or without
      Custom made specifications - standard
