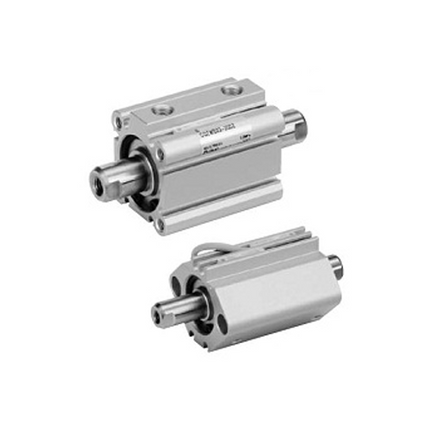

Name: SMC CQ2W-Z Series Compact Cylinder. Double Acting , Double Rod, CDQ2WA32-40DZ
Brand: SMC
SKU: CDQ2WA32-40DZ
Price: 44.89 USD
Availability: InStock

SMC CQ2W-Z Series Compact Cylinder. Double Acting , Double Rod, CDQ2WA32-40DZ

VendorSMC

Description

OVERVIEW

A space-saving cylinder designed with a thin overall length to realize compact equipment
Small auto switches can be attached to 4 surfaces (2 surfaces for ø12 to ø25).
There is no protruding auto switch.
Light weight: reduced by 5~13% (compared to the previous CQ2)
Newly added support bracket for double clevis and compact foot type bracket
Enclosed installation bolt and set the part number for rod end bracket attachment (reducing the trouble of ordering separately)
With auto switch (CDQ2 series: CDQ2, CDQ2W, CDQ2K, CDQ2KW, CDQP2, CDQ2 S, CDBQ2)

Specification item	model symbol	Specification information
built-in magnet	D	built-in magnet
installation support	A	both ends tab
form	-	pneumatic type
tube inner diameter	32	Bore size 32mm
Types of port screws	-	Rc/M screw
cylinder stroke	40	cylinder stroke 40mm
body options	-	Standard (rod end female thread)
Auto switch mounting groove	Z	ø12-ø25 2 sides/ø32-ø100 4 sides
auto switch	-	Without auto switch
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

Specification — CDQ2WA32-40DZ

Magnet	Built-in magnet
Mounting	Both ends tapped
Bore	32mm
Stroke	40mm
Body option	Standard (rod end female thread)
Auto switch	Without auto switch
Weight	404 g

Specification values above are for model code CDQ2WA32-40DZ as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.

Product form

OVERVIEW A space-saving cylinder designed with a thin overall length to realize compact equipment Small auto switches can be attached... Read more

SKU: CDQ2WA32-40DZ

$44.89 Excl. VAT

Ships within 5–10 business days

Ships from South Korea

Export packing available

Worldwide shipping
