Name: SMC CQ2W-Z Series Compact Cylinder. Double Acting , Double Rod, CDQ2WB25-15DCZ
Brand: SMC
SKU: CDQ2WB25-15DCZ
Price: 38.28 USD
Availability: InStock

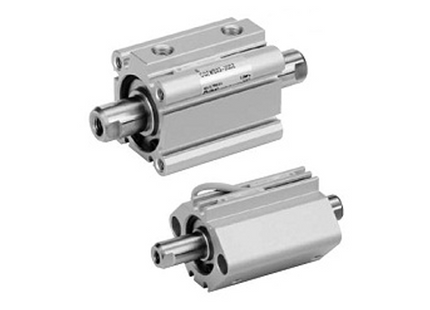

SMC CQ2W-Z Series Compact Cylinder. Double Acting , Double Rod, CDQ2WB25-15DCZ

VendorSMC

Description

OVERVIEW

A space-saving cylinder designed with a thin overall length to realize compact equipment
Small auto switches can be attached to 4 surfaces (2 surfaces for ø12 to ø25).
There is no protruding auto switch.
Light weight: reduced by 5~13% (compared to the previous CQ2)
Newly added support bracket for double clevis and compact foot type bracket
Enclosed installation bolt and set the part number for rod end bracket attachment (reducing the trouble of ordering separately)
With auto switch (CDQ2 series: CDQ2, CDQ2W, CDQ2K, CDQ2KW, CDQP2, CDQ2 S, CDBQ2)

Specification item	model symbol	Specification information
built-in magnet	D	built-in magnet
installation support	B	Through hole (standard)
form	-	pneumatic type
tube inner diameter	25	tube inner diameter 25mm
Types of port screws	-	Rc/M screw
cylinder stroke	15	cylinder stroke 15mm
body options	C	With rubber cushion
Auto switch mounting groove	Z	ø12-ø25 2 sides/ø32-ø100 4 sides
auto switch	-	Without auto switch
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

Specification — CDQ2WB25-15DCZ

Magnet	Built-in magnet
Mounting	Through hole (standard)
Bore	25mm
Stroke	15mm
Body option	With rubber bumper
Auto switch	Without auto switch
Port size	M5X0.8
Fluid	Air
Action	Double acting, double rod
Rod end female thread	M6X1.0
Min. operating pressure	0.05 MPa
Max. operating pressure	1.0 MPa
Proof pressure	1.5 MPa
Lubrication	Non-lube
Ambient temp. min	-10 °C
Ambient temp. max	60 °C
Weight	201 g

Specification values above are for model code CDQ2WB25-15DCZ as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.

Product form

OVERVIEW A space-saving cylinder designed with a thin overall length to realize compact equipment Small auto switches can be attached... Read more

SKU: CDQ2WB25-15DCZ

$38.28 Excl. VAT

Ships within 5–10 business days

Ships from South Korea

Export packing available

Worldwide shipping

Secure payments Paypal

Description

OVERVIEW

A space-saving cylinder designed with a thin overall length to realize compact equipment
Small auto switches can be attached to 4 surfaces (2 surfaces for ø12 to ø25).
There is no protruding auto switch.
Light weight: reduced by 5~13% (compared to the previous CQ2)
Newly added support bracket for double clevis and compact foot type bracket
Enclosed installation bolt and set the part number for rod end bracket attachment (reducing the trouble of ordering separately)
With auto switch (CDQ2 series: CDQ2, CDQ2W, CDQ2K, CDQ2KW, CDQP2, CDQ2 S, CDBQ2)

Specification item	model symbol	Specification information
built-in magnet	D	built-in magnet
installation support	B	Through hole (standard)
form	-	pneumatic type
tube inner diameter	25	tube inner diameter 25mm
Types of port screws	-	Rc/M screw
cylinder stroke	15	cylinder stroke 15mm
body options	C	With rubber cushion
Auto switch mounting groove	Z	ø12-ø25 2 sides/ø32-ø100 4 sides
auto switch	-	Without auto switch
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

Specification — CDQ2WB25-15DCZ

Magnet	Built-in magnet
Mounting	Through hole (standard)
Bore	25mm
Stroke	15mm
Body option	With rubber bumper
Auto switch	Without auto switch
Port size	M5X0.8
Fluid	Air
Action	Double acting, double rod
Rod end female thread	M6X1.0
Min. operating pressure	0.05 MPa
Max. operating pressure	1.0 MPa
Proof pressure	1.5 MPa
Lubrication	Non-lube
Ambient temp. min	-10 °C
Ambient temp. max	60 °C
Weight	201 g

Specification values above are for model code CDQ2WB25-15DCZ as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
