Description

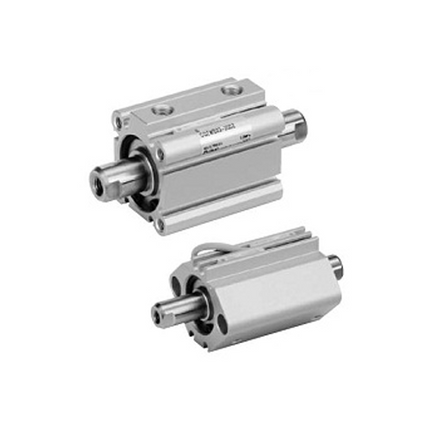

SMC CDQ2WB32-25DZ — CQ2W-Z Series Compact Cylinder. Double Acting , Double Rod. This code specifies 32mm bore, 25mm stroke, double acting, built-in magnet, without auto switch.
Specification — CDQ2WB32-25DZ
| Magnet |
Built-in magnet |
| Mounting |
Through hole (standard) |
| Bore |
32mm |
| Stroke |
25mm |
| Body option |
Standard (rod end female thread) |
| Auto switch |
Without auto switch |
| Weight |
329 g |
Specification values above are for model code CDQ2WB32-25DZ as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
About the SMC CQ2W-Z series
- A space-saving cylinder designed with a thin overall length to realize compact equipment
- Small auto switches can be attached to 4 surfaces (2 surfaces for ø12 to ø25).
- There is no protruding auto switch.
- Light weight: reduced by 5~13% (compared to the previous CQ2)
- Newly added support bracket for double clevis and compact foot type bracket
- Enclosed installation bolt and set the part number for rod end bracket attachment (reducing the trouble of ordering separately)
