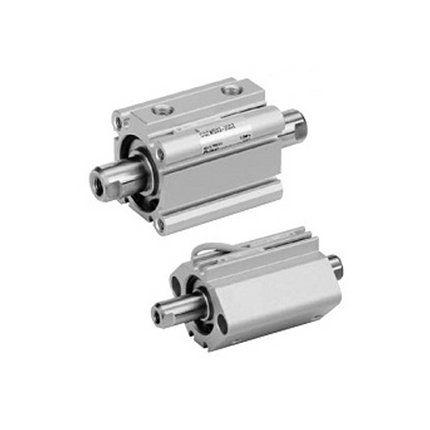

Name: SMC CQ2W-Z Series Compact Cylinder. Double Acting , Double Rod, CQ2WB25-35DM
Brand: SMC
SKU: CQ2WB25-35DM
Price: 39.05 USD
Availability: InStock

SMC CQ2W-Z Series Compact Cylinder. Double Acting , Double Rod, CQ2WB25-35DM

VendorSMC

Description

OVERVIEW

A space-saving cylinder designed with a thin overall length to realize compact equipment
Small auto switches can be attached to 4 surfaces (2 surfaces for ø12 to ø25).
There is no protruding auto switch.
Light weight: reduced by 5~13% (compared to the previous CQ2)
Newly added support bracket for double clevis and compact foot type bracket
Enclosed installation bolt and set the part number for rod end bracket attachment (reducing the trouble of ordering separately)
With auto switch (CDQ2 series: CDQ2, CDQ2W, CDQ2K, CDQ2KW, CDQP2, CDQ2 S, CDBQ2)

Specification item	model symbol	Specification information
built-in magnet	-	No built-in magnet
installation support	B	Through hole (standard)
form	-	pneumatic type
tube inner diameter	25	tube inner diameter 25mm
Types of port screws	-	Rc/M screw
cylinder stroke	35	cylinder stroke 35mm
body options	M	rod end male thread
Auto switch mounting groove	-	No auto switch mounting groove
auto switch	-	Without auto switch
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

Specification — CQ2WB25-35DM

Magnet	No built-in magnet
Mounting	Through hole (standard)
Bore	25mm
Stroke	35mm
Body option	Rod end male thread
Auto switch	Without auto switch
Port size	M5X0.8
Fluid	Air
Action	Double acting, double rod
Rod end male thread	M10X1.25
Min. operating pressure	0.05 MPa
Max. operating pressure	1.0 MPa
Proof pressure	1.5 MPa
Lubrication	Non-lube
Ambient temp. min	-10 °C
Ambient temp. max	70 °C
Weight	221 g

Specification values above are for model code CQ2WB25-35DM as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
