Description

OVERVIEW

A space-saving cylinder designed with a thin overall length to realize compact equipment
Small auto switches can be attached to 4 surfaces (2 surfaces for ø12 to ø25).
There is no protruding auto switch.
Light weight: reduced by 5~13% (compared to the previous CQ2)
Newly added support bracket for double clevis and compact foot type bracket
Enclosed installation bolt and set the part number for rod end bracket attachment (reducing the trouble of ordering separately)
With auto switch (CDQ2 series: CDQ2, CDQ2W, CDQ2K, CDQ2KW, CDQP2, CDQ2 S, CDBQ2)

Specification item	model symbol	Specification information
built-in magnet	-	No built-in magnet
installation support	B	Through hole (standard)
form	-	pneumatic type
tube inner diameter	50	tube inner diameter 50mm
Types of port screws	-	Rc/M screw
cylinder stroke	10	cylinder stroke 10mm
body options	M	rod end male thread
Auto switch mounting groove	Z	ø12-ø25 2 sides/ø32-ø100 4 sides
auto switch	-	Without auto switch
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

Product form

OVERVIEW A space-saving cylinder designed with a thin overall length to realize compact equipment Small auto switches can be attached... Read more

SKU: CQ2WB50-10DMZ

$85.50 Excl. VAT

A space-saving cylinder designed with a thin overall length to realize compact equipment
Small auto switches can be attached to 4 surfaces (2 surfaces for ø12 to ø25).
There is no protruding auto switch.
Light weight: reduced by 5~13% (compared to the previous CQ2)
Newly added support bracket for double clevis and compact foot type bracket
Enclosed installation bolt and set the part number for rod end bracket attachment (reducing the trouble of ordering separately)
With auto switch (CDQ2 series: CDQ2, CDQ2W, CDQ2K, CDQ2KW, CDQP2, CDQ2 S, CDBQ2)

Specification item	model symbol	Specification information
built-in magnet	-	No built-in magnet
installation support	B	Through hole (standard)
form	-	pneumatic type
tube inner diameter	50	tube inner diameter 50mm
Types of port screws	-	Rc/M screw
cylinder stroke	10	cylinder stroke 10mm
body options	M	rod end male thread
Auto switch mounting groove	Z	ø12-ø25 2 sides/ø32-ø100 4 sides
auto switch	-	Without auto switch
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

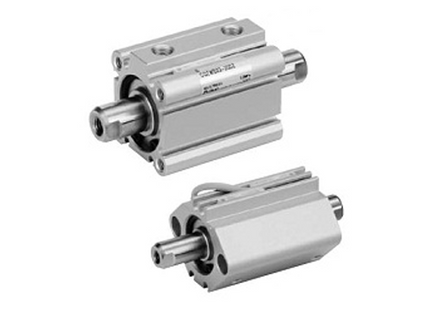

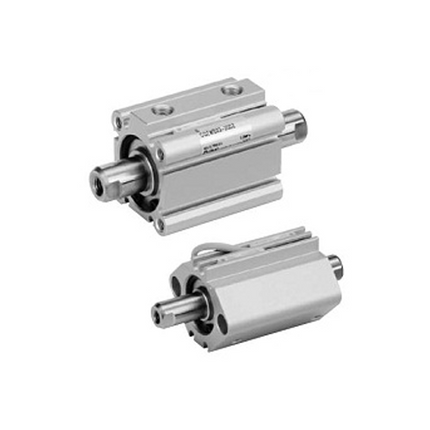

Name: SMC CQ2W-Z Series Compact Cylinder. Double Acting , Double Rod, CQ2WB50-10DMZ
Brand: SMC
SKU: CQ2WB50-10DMZ
Price: 85.5 USD
