Description

OVERVIEW

A space-saving cylinder designed with a thin overall length to realize compact equipment
Small auto switches can be attached to 4 surfaces (2 surfaces for ø12 to ø25).
There is no protruding auto switch.
Light weight: reduced by 5~13% (compared to the previous CQ2)
Newly added support bracket for double clevis and compact foot type bracket
Enclosed installation bolt and set the part number for rod end bracket attachment (reducing the trouble of ordering separately)
With auto switch (CDQ2 series: CDQ2, CDQ2W, CDQ2K, CDQ2KW, CDQP2, CDQ2 S, CDBQ2)

Specification item	model symbol	Specification information
With auto switch	D	With auto switch
installation	A	both ends tab
tube inner diameter	32	Bore size 32mm
port type	-	Rc
cylinder stroke	20	cylinder stroke 20mm
how it works	D	double acting
body options	-	standard
cushion	C	rubber cushion
body option 2	-	Standard (rod end female thread)
Auto switch mounting groove	Z	4 sides
auto switch	-	Without auto switch Built-in magnet cylinder
Auto switch additional symbol	-	2 with or without

Product form

OVERVIEW A space-saving cylinder designed with a thin overall length to realize compact equipment Small auto switches can be attached... Read more

SKU: CDQ2YA32-20DCZ

$67.45 Excl. VAT

A space-saving cylinder designed with a thin overall length to realize compact equipment
Small auto switches can be attached to 4 surfaces (2 surfaces for ø12 to ø25).
There is no protruding auto switch.
Light weight: reduced by 5~13% (compared to the previous CQ2)
Newly added support bracket for double clevis and compact foot type bracket
Enclosed installation bolt and set the part number for rod end bracket attachment (reducing the trouble of ordering separately)
With auto switch (CDQ2 series: CDQ2, CDQ2W, CDQ2K, CDQ2KW, CDQP2, CDQ2 S, CDBQ2)

Specification item	model symbol	Specification information
With auto switch	D	With auto switch
installation	A	both ends tab
tube inner diameter	32	Bore size 32mm
port type	-	Rc
cylinder stroke	20	cylinder stroke 20mm
how it works	D	double acting
body options	-	standard
cushion	C	rubber cushion
body option 2	-	Standard (rod end female thread)
Auto switch mounting groove	Z	4 sides
auto switch	-	Without auto switch Built-in magnet cylinder
Auto switch additional symbol	-	2 with or without

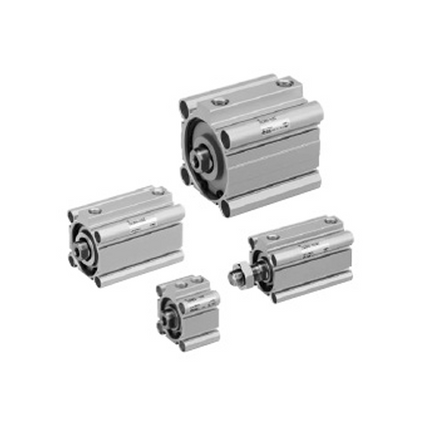

Name: SMC CQ2Y-Z Series, Low Speed, Low Friction Cylinder, CDQ2YA32-20DCZ
Brand: SMC
SKU: CDQ2YA32-20DCZ
Price: 67.45 USD
