Description

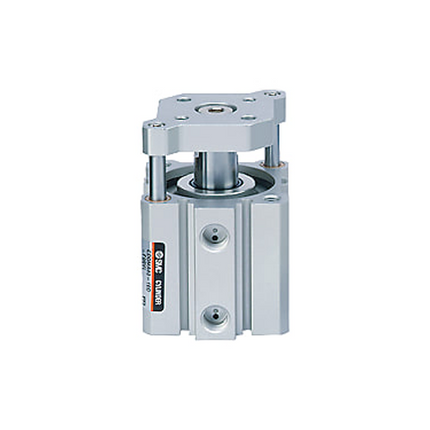

SMC CDQMA32-75-M9BL — CQM Series Compact Guide Rod Cylinder. This code specifies 32mm bore, 75mm stroke, double acting, single rod.
Specification — CDQMA32-75-M9BL
| Mounting |
Both ends tapped |
| Bore |
32mm |
| Stroke |
75mm |
| Port size |
1/8 |
| Fluid |
Air |
| Action |
Double acting, single rod |
| Cushion |
Rubber bumper |
| Min. operating pressure |
0.1 MPa |
| Max. operating pressure |
1.0 MPa |
| Proof pressure |
1.5 MPa |
| Lubrication |
Non-lube |
| Fluid temp. min |
-10 °C |
| Fluid temp. max |
60 °C |
| Ambient temp. min |
-10 °C |
| Ambient temp. max |
60 °C |
| Piston speed min |
50 mm/s |
| Weight |
629 g |
Specification values above are for model code CDQMA32-75-M9BL as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
About the SMC CQM series
- Built-in guide rod in thin cylinder CQS, CQ2 series
- Anti-rotation accuracy ±0.2° or less
- Lateral load resistance 2 to 4 times Comparison with thin cylinder CQ series
- Direct mounting of load is possible
- Mounting dimensions for CQS, CQ2 series Compatible with
- With auto switch (CDQM series: CDQM)
Supply from Korea
Genuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.
