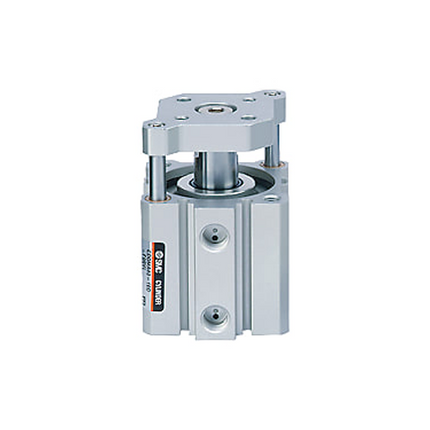

Name: SMC CQM Series Compact Guide Rod Cylinder, CDQMA80-10
Brand: SMC
SKU: CDQMA80-10
Price: 114.94 USD
Availability: InStock

SMC CQM Series Compact Guide Rod Cylinder, CDQMA80-10

VendorSMC

Description

OVERVIEW

Built-in guide rod in thin cylinder CQS, CQ2 series
Anti-rotation accuracy ±0.2° or less
Lateral load resistance 2 to 4 times ※Comparison with thin cylinder CQ series
Direct mounting of load is possible
Mounting dimensions for CQS, CQ2 series Compatible with
With auto switch (CDQM series: CDQM)

Specification item	model symbol	Specification information
With auto switch	D	With auto switch
installation support	A	both ends tab
tube inner diameter	80	Tube inner diameter 80mm
Types of port screws	-	M screw, Rc
cylinder stroke	10	cylinder stroke 10mm
auto switch	-	Without auto switch Built-in magnet Without rod with switch
Auto switch additional symbol	-	2 with or without

Specification — CDQMA80-10

Mounting	Both ends tapped
Bore	80mm
Stroke	10mm
Auto switch	Without auto switch
Port size	3/8
Fluid	Air
Action	Double acting, single rod
Cushion	Rubber bumper
Min. operating pressure	0.1 MPa
Max. operating pressure	1.0 MPa
Proof pressure	1.5 MPa
Lubrication	Non-lube
Fluid temp. min	-10 °C
Fluid temp. max	60 °C
Ambient temp. min	-10 °C
Ambient temp. max	60 °C
Weight	1,000 g

Specification values above are for model code CDQMA80-10 as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
