Description

OVERVIEW

Built-in guide rod in thin cylinder CQS, CQ2 series
Anti-rotation accuracy ±0.2° or less
Lateral load resistance 2 to 4 times ※Comparison with thin cylinder CQ series
Direct mounting of load is possible
Mounting dimensions for CQS, CQ2 series Compatible with
With auto switch (CDQM series: CDQM)

Specification item	model symbol	Specification information
With auto switch	D	With auto switch
installation support	B	Through hole (standard)
tube inner diameter	12	tube inner diameter 12mm
Types of port screws	-	M screw, Rc
cylinder stroke	15	cylinder stroke 15mm
auto switch	M9B	Solid-state auto switch, grommet, with light, 2-wire type, lateral entry, lead wire 0.5 m, applied voltage: DC24V (DC10 to 28V)
Auto switch additional symbol	-	2 with or without

Product form

OVERVIEW Built-in guide rod in thin cylinder CQS, CQ2 series Anti-rotation accuracy ±0.2° or less Lateral load resistance 2 to... Read more

SKU: CDQMB12-15-M9B

$124.58 Excl. VAT

Ships within 5–10 business days

Ships from South Korea

Export packing available

Worldwide shipping

Secure payments Paypal

Description

OVERVIEW

Built-in guide rod in thin cylinder CQS, CQ2 series
Anti-rotation accuracy ±0.2° or less
Lateral load resistance 2 to 4 times ※Comparison with thin cylinder CQ series
Direct mounting of load is possible
Mounting dimensions for CQS, CQ2 series Compatible with
With auto switch (CDQM series: CDQM)

Specification item	model symbol	Specification information
With auto switch	D	With auto switch
installation support	B	Through hole (standard)
tube inner diameter	12	tube inner diameter 12mm
Types of port screws	-	M screw, Rc
cylinder stroke	15	cylinder stroke 15mm
auto switch	M9B	Solid-state auto switch, grommet, with light, 2-wire type, lateral entry, lead wire 0.5 m, applied voltage: DC24V (DC10 to 28V)
Auto switch additional symbol	-	2 with or without

Reviews

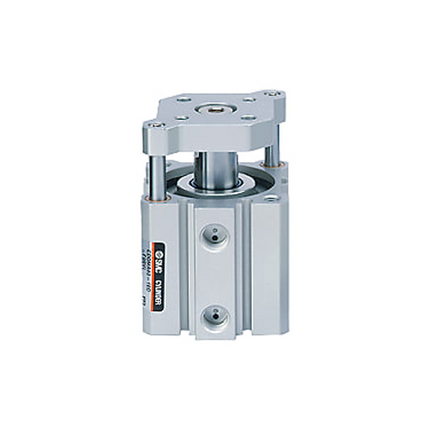

Name: SMC CQM Series Compact Guide Rod Cylinder, CDQMB12-15-M9B
Brand: SMC
SKU: CDQMB12-15-M9B
Price: 124.58 USD
Availability: InStock

SMC CQM Series Compact Guide Rod Cylinder, CDQMB12-15-M9B
