Description

OVERVIEW

Built-in guide rod in thin cylinder CQS, CQ2 series
Anti-rotation accuracy ±0.2° or less
Lateral load resistance 2 to 4 times ※Comparison with thin cylinder CQ series
Direct mounting of load is possible
Mounting dimensions for CQS, CQ2 series Compatible with
With auto switch (CDQM series: CDQM)

Specification item	model symbol	Specification information
With auto switch	D	With auto switch
installation support	B	Through hole (standard)
tube inner diameter	16	tube inner diameter 16mm
Types of port screws	-	M screw, Rc
cylinder stroke	10	cylinder stroke 10mm
auto switch	M9BWV	2-color display, solid-state auto switch, grommet, with light, 2-wire type, longitudinal entry, lead wire 0.5 m, applied voltage: DC24V (DC10 to 28V)
Auto switch additional symbol	-	2 with or without

Product form

OVERVIEW Built-in guide rod in thin cylinder CQS, CQ2 series Anti-rotation accuracy ±0.2° or less Lateral load resistance 2 to... Read more

SKU: CDQMB16-10-M9BWV

$137.17 Excl. VAT

Ships within 5–10 business days

Ships from South Korea

Export packing available

Worldwide shipping

Secure payments Paypal

Description

OVERVIEW

Built-in guide rod in thin cylinder CQS, CQ2 series
Anti-rotation accuracy ±0.2° or less
Lateral load resistance 2 to 4 times ※Comparison with thin cylinder CQ series
Direct mounting of load is possible
Mounting dimensions for CQS, CQ2 series Compatible with
With auto switch (CDQM series: CDQM)

Specification item	model symbol	Specification information
With auto switch	D	With auto switch
installation support	B	Through hole (standard)
tube inner diameter	16	tube inner diameter 16mm
Types of port screws	-	M screw, Rc
cylinder stroke	10	cylinder stroke 10mm
auto switch	M9BWV	2-color display, solid-state auto switch, grommet, with light, 2-wire type, longitudinal entry, lead wire 0.5 m, applied voltage: DC24V (DC10 to 28V)
Auto switch additional symbol	-	2 with or without

Reviews

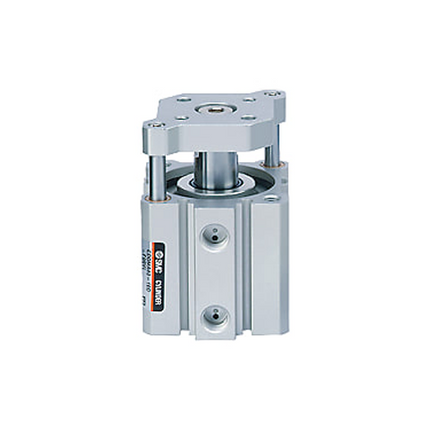

Name: SMC CQM Series Compact Guide Rod Cylinder, CDQMB16-10-M9BWV
Brand: SMC
SKU: CDQMB16-10-M9BWV
Price: 137.17 USD
Availability: InStock

SMC CQM Series Compact Guide Rod Cylinder, CDQMB16-10-M9BWV
