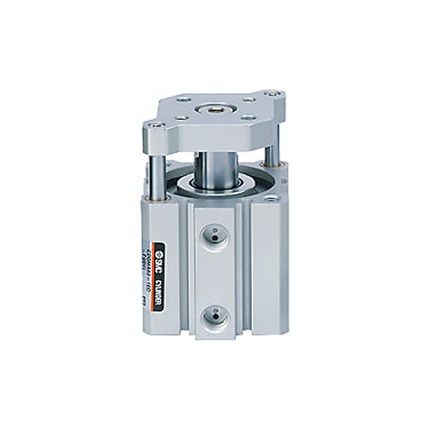

SMC CQM Series Compact Guide Rod Cylinder, CDQMB32-10-A93L

Description

OVERVIEW


  • Built-in guide rod in thin cylinder CQS, CQ2 series
  • Anti-rotation accuracy ±0.2° or less
  • Lateral load resistance 2 to 4 times ※Comparison with thin cylinder CQ series
  • Direct mounting of load is possible
  • Mounting dimensions for CQS, CQ2 series Compatible with
  • With auto switch (CDQM series: CDQM)



Specification item model symbol Specification information
With auto switch D With auto switch
installation support B Through hole (standard)
tube inner diameter 32 Bore size 32mm
Types of port screws - M screw, Rc
cylinder stroke 10 cylinder stroke 10mm
auto switch A93L Reed auto switch, grommet, with light, 2-wire type, side entry, lead wire 3 m, applied voltage: DC24V, AC100V
Auto switch additional symbol - 2 with or without

Specification — CDQMB32-10-A93L

Mounting Through hole (standard)
Bore 32mm
Stroke 10mm
Port size 1/8
Fluid Air
Action Double acting, single rod
Cushion Rubber bumper
Min. operating pressure 0.1 MPa
Max. operating pressure 1.0 MPa
Proof pressure 1.5 MPa
Lubrication Non-lube
Fluid temp. min -10 °C
Fluid temp. max 60 °C
Ambient temp. min -10 °C
Ambient temp. max 60 °C
Piston speed min 50 mm/s
Weight 324 g

Specification values above are for model code CDQMB32-10-A93L as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.

Product form

OVERVIEW Built-in guide rod in thin cylinder CQS, CQ2 series Anti-rotation accuracy ±0.2° or less Lateral load resistance 2 to... Read more

SKU: CDQMB32-10-A93L

$146.81 Excl. VAT

    • Ships within 5–10 business days
    • Ships from South Korea
    • Export packing available
    • Worldwide shipping
    • Secure payments Paypal

    Description

    OVERVIEW


    • Built-in guide rod in thin cylinder CQS, CQ2 series
    • Anti-rotation accuracy ±0.2° or less
    • Lateral load resistance 2 to 4 times ※Comparison with thin cylinder CQ series
    • Direct mounting of load is possible
    • Mounting dimensions for CQS, CQ2 series Compatible with
    • With auto switch (CDQM series: CDQM)



    Specification item model symbol Specification information
    With auto switch D With auto switch
    installation support B Through hole (standard)
    tube inner diameter 32 Bore size 32mm
    Types of port screws - M screw, Rc
    cylinder stroke 10 cylinder stroke 10mm
    auto switch A93L Reed auto switch, grommet, with light, 2-wire type, side entry, lead wire 3 m, applied voltage: DC24V, AC100V
    Auto switch additional symbol - 2 with or without

    Specification — CDQMB32-10-A93L

    Mounting Through hole (standard)
    Bore 32mm
    Stroke 10mm
    Port size 1/8
    Fluid Air
    Action Double acting, single rod
    Cushion Rubber bumper
    Min. operating pressure 0.1 MPa
    Max. operating pressure 1.0 MPa
    Proof pressure 1.5 MPa
    Lubrication Non-lube
    Fluid temp. min -10 °C
    Fluid temp. max 60 °C
    Ambient temp. min -10 °C
    Ambient temp. max 60 °C
    Piston speed min 50 mm/s
    Weight 324 g

    Specification values above are for model code CDQMB32-10-A93L as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
