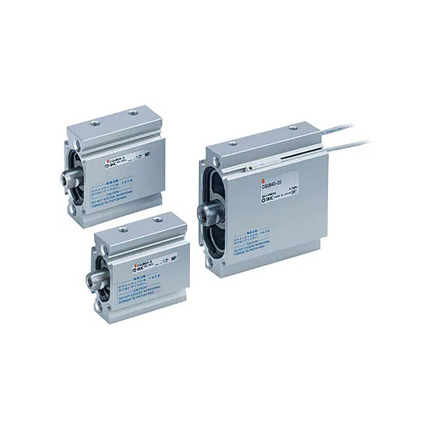

SMC CQU Series Compact Plate Cylinder, Double Acting, Single Rod, CQUB20-10M

Description

OVERVIEW


  • Reduction in width by up to 40% as the piston is oval (compared to CQ2 series)
  • Up to 36% reduced in weight (compared to MU series)
  • Auto switches can be attached from 4 directions
  • There is no protruding auto switch



Specification item model symbol Specification information
installation B Through-hole/double-end tap common (standard)
size 20 Piston area equivalent to ø25
cylinder stroke 10 cylinder stroke 10mm
rod end screw M rod end male thread
auto switch - Without auto switch Built-in magnet Without rod with switch
Auto switch additional symbol - 2 with or without

Product form

OVERVIEW Reduction in width by up to 40% as the piston is oval (compared to CQ2 series) Up to 36%... Read more

SKU: CQUB20-10M

$51.20 Excl. VAT

    • Quick delivery worldwide
    • Satisfied or refunded
    • Secure payments Paypal

      Description

      OVERVIEW


      • Reduction in width by up to 40% as the piston is oval (compared to CQ2 series)
      • Up to 36% reduced in weight (compared to MU series)
      • Auto switches can be attached from 4 directions
      • There is no protruding auto switch



      Specification item model symbol Specification information
      installation B Through-hole/double-end tap common (standard)
      size 20 Piston area equivalent to ø25
      cylinder stroke 10 cylinder stroke 10mm
      rod end screw M rod end male thread
      auto switch - Without auto switch Built-in magnet Without rod with switch
      Auto switch additional symbol - 2 with or without
