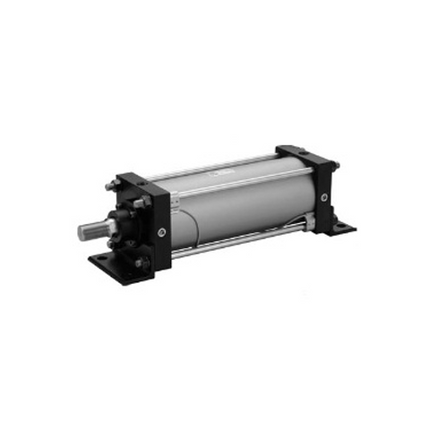

SMC CS2 Series Tie-Rod Air Cylinder, Non-Lube, CDS2B140-200

Description

OVERVIEW


  •  Φ180, Φ200, and Φ250 have been added. [New]
  •  The axial centralized piping type has been added. (ø180, ø200, and ø250 only) [New]
  •  Lightweight: Weight reduced by up to 65% (39.1 kg → 13.4 kg)
  • High rigidity (Allowable lateral load: Max. 700 N)
  • Improved ease of piping:
    Centralized piping ports in the axial direction increase piping flexibility.
    (Axial centralized piping type)



Specification item model symbol Specification information
With auto switch D With auto switch
installation support B Basic type
tube inner diameter 140 Tube inner diameter 140mm
Types of port screws - Rc
cylinder stroke 200 cylinder stroke 200mm
Cylinder additional symbol - No bellows, with air cushions on both sides
Stroke adjustment symbol - doesn't exist
dual stroke mark - No dual stroke mark
cylinder stroke 2 - Cylinder stroke 2 None
Cylinder additional symbol 2 - No bellows, with air cushions on both sides
auto switch - Without auto switch
Auto switch additional symbol - 2 with or without
Custom made specifications - standard

Product form

OVERVIEW  Φ180, Φ200, and Φ250 have been added. [New]  The axial centralized piping type has been added. (ø180, ø200, and ø250 only)... Read more

SKU: CDS2B140-200

$482.25 Excl. VAT

    • Quick delivery worldwide
    • Satisfied or refunded
    • Secure payments Paypal
    • Shipped today? Order within: Nov 25, 2024 17:00:00 +0900

    Description

    OVERVIEW


    •  Φ180, Φ200, and Φ250 have been added. [New]
    •  The axial centralized piping type has been added. (ø180, ø200, and ø250 only) [New]
    •  Lightweight: Weight reduced by up to 65% (39.1 kg → 13.4 kg)
    • High rigidity (Allowable lateral load: Max. 700 N)
    • Improved ease of piping:
      Centralized piping ports in the axial direction increase piping flexibility.
      (Axial centralized piping type)



    Specification item model symbol Specification information
    With auto switch D With auto switch
    installation support B Basic type
    tube inner diameter 140 Tube inner diameter 140mm
    Types of port screws - Rc
    cylinder stroke 200 cylinder stroke 200mm
    Cylinder additional symbol - No bellows, with air cushions on both sides
    Stroke adjustment symbol - doesn't exist
    dual stroke mark - No dual stroke mark
    cylinder stroke 2 - Cylinder stroke 2 None
    Cylinder additional symbol 2 - No bellows, with air cushions on both sides
    auto switch - Without auto switch
    Auto switch additional symbol - 2 with or without
    Custom made specifications - standard
