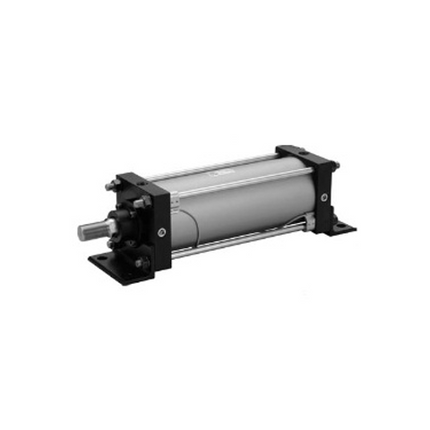

SMC CS2 Series Tie-Rod Air Cylinder, Non-Lube, CDS2F125-125-M9BL

Description

OVERVIEW


  •  Φ180, Φ200, and Φ250 have been added. [New]
  •  The axial centralized piping type has been added. (ø180, ø200, and ø250 only) [New]
  •  Lightweight: Weight reduced by up to 65% (39.1 kg → 13.4 kg)
  • High rigidity (Allowable lateral load: Max. 700 N)
  • Improved ease of piping:
    Centralized piping ports in the axial direction increase piping flexibility.
    (Axial centralized piping type)



Specification item model symbol Specification information
With auto switch D With auto switch
installation support F Rod side flange type
tube inner diameter 125 Tube inner diameter 125mm
Types of port screws - Rc
cylinder stroke 125 Cylinder stroke 125mm
Cylinder additional symbol - No bellows, with air cushions on both sides
Stroke adjustment symbol - doesn't exist
dual stroke mark - No dual stroke mark
cylinder stroke 2 - Cylinder stroke 2 None
Cylinder additional symbol 2 - No bellows, with air cushions on both sides
auto switch M9BL Solid-state auto switch, grommet, with light, 2-wire type, lateral entry, lead wire 3 m, applied voltage: DC24V (DC10 to 28V)
Auto switch additional symbol - 2 with or without
Custom made specifications - standard

Product form

OVERVIEW  Φ180, Φ200, and Φ250 have been added. [New]  The axial centralized piping type has been added. (ø180, ø200, and ø250 only)... Read more

SKU: CDS2F125-125-M9BL

$496.79 Excl. VAT

    • Quick delivery worldwide
    • Satisfied or refunded
    • Secure payments Paypal
    • Shipped today? Order within: Oct 05, 2024 17:00:00 +0900
