Description

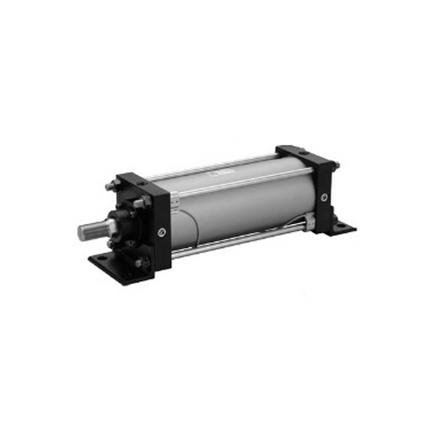

SMC CDS2F140-150 — CS2 Series Tie-Rod Air Cylinder, Non-Lube. This code specifies 140mm bore, 150mm stroke, double acting, without auto switch.
Specification — CDS2F140-150
| Mounting |
Rod side flange |
| Bore |
140mm |
| Port thread |
Rc |
| Stroke |
150mm |
| Auto switch |
Without auto switch |
| Port size |
1/2 |
| Fluid |
Air |
| Action |
Double acting |
| Cushion |
Air cushion |
| Rod end male thread |
M30X1.5 |
| Min. operating pressure |
0.05 MPa |
| Max. operating pressure |
0.97 MPa |
| Proof pressure |
1.57 MPa |
| Fluid temp. min |
0 ℃ |
| Fluid temp. max |
70 ℃ |
| Ambient temp. min |
0 ℃ |
| Weight |
14,750 g |
Specification values above are for model code CDS2F140-150 as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
About the SMC CS2 series
- Φ180, Φ200, and Φ250 have been added. [New]
- The axial centralized piping type has been added. (ø180, ø200, and ø250 only) [New]
- Lightweight: Weight reduced by up to 65% (39.1 kg 13.4 kg)
- High rigidity (Allowable lateral load: Max. 700 N)
- Improved ease of piping: Centralized piping ports in the axial direction increase piping flexibility.(Axial centralized piping type)
