Description

OVERVIEW

Φ180, Φ200, and Φ250 have been added. [New]
The axial centralized piping type has been added. (ø180, ø200, and ø250 only) [New]
Lightweight: Weight reduced by up to 65% (39.1 kg → 13.4 kg)
High rigidity (Allowable lateral load: Max. 700 N)
Improved ease of piping:
Centralized piping ports in the axial direction increase piping flexibility.
(Axial centralized piping type)

Specification item	model symbol	Specification information
With auto switch	D	With auto switch
installation support	G	Head side flange type
tube inner diameter	125	Tube inner diameter 125mm
Types of port screws	-	Rc
cylinder stroke	200	cylinder stroke 200mm
Cylinder additional symbol	-	No bellows, with air cushions on both sides
Stroke adjustment symbol	-	doesn't exist
dual stroke mark	-	No dual stroke mark
cylinder stroke 2	-	Cylinder stroke 2 None
Cylinder additional symbol 2	-	No bellows, with air cushions on both sides
auto switch	A93L	Reed auto switch, grommet, with light, 2-wire type, side entry, lead wire 3 m, applied voltage: DC24V, AC100V
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

Product form

OVERVIEW Φ180, Φ200, and Φ250 have been added. [New] The axial centralized piping type has been added. (ø180, ø200, and ø250 only)... Read more

SKU: CDS2G125-200-A93L

$496.79 Excl. VAT

Φ180, Φ200, and Φ250 have been added. [New]
The axial centralized piping type has been added. (ø180, ø200, and ø250 only) [New]
Lightweight: Weight reduced by up to 65% (39.1 kg → 13.4 kg)
High rigidity (Allowable lateral load: Max. 700 N)
Improved ease of piping:
Centralized piping ports in the axial direction increase piping flexibility.
(Axial centralized piping type)

Specification item	model symbol	Specification information
With auto switch	D	With auto switch
installation support	G	Head side flange type
tube inner diameter	125	Tube inner diameter 125mm
Types of port screws	-	Rc
cylinder stroke	200	cylinder stroke 200mm
Cylinder additional symbol	-	No bellows, with air cushions on both sides
Stroke adjustment symbol	-	doesn't exist
dual stroke mark	-	No dual stroke mark
cylinder stroke 2	-	Cylinder stroke 2 None
Cylinder additional symbol 2	-	No bellows, with air cushions on both sides
auto switch	A93L	Reed auto switch, grommet, with light, 2-wire type, side entry, lead wire 3 m, applied voltage: DC24V, AC100V
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

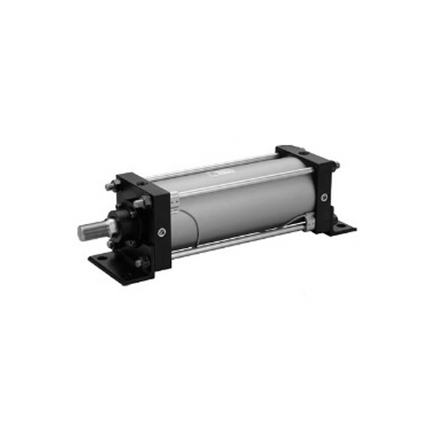

Name: SMC CS2 Series Tie-Rod Air Cylinder, Non-Lube, CDS2G125-200-A93L
Brand: SMC
SKU: CDS2G125-200-A93L
Price: 496.79 USD
