Name: SMC CU Series, Free Mounting Cylinder, Double Acting, Single Rod, CDU16-25D-M9N
Brand: SMC
SKU: CDU16-25D-M9N
Price: 106.98 USD
Availability: InStock

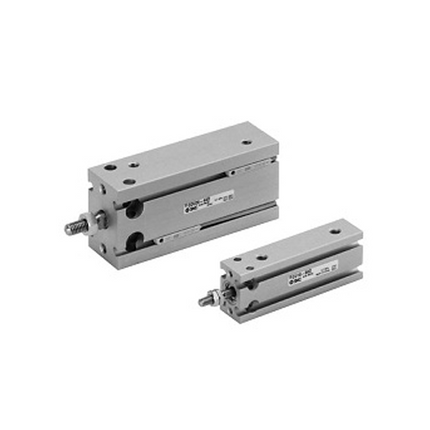

SMC CU Series, Free Mounting Cylinder, Double Acting, Single Rod, CDU16-25D-M9N

VendorSMC

Description

OVERVIEW

Space-saving cylinder that can be directly installed on both sides of the cylinder
With auto switch (CDU series: CDU, CDUW, CDUK, CDUKW, CDU-A, ZCDUK)

Specification item	model symbol	Specification information
With auto switch	D	With auto switch
tube inner diameter	16	tube inner diameter 16mm
Types of port screws	-	M5X0.8 Rc1/8
cylinder stroke	25	cylinder stroke 25mm
auto switch	M9N	Solid-state auto switch, grommet, with light, 3-wire type (NPN), lateral entry, lead wire 0.5 m, applied voltage: DC5V, 12V, 24V (DC4.5 to 28V)
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

Specification — CDU16-25D-M9N

Bore	16mm
Port thread	M5X0.8 Rc1/8
Stroke	25mm
Port size	M5X0.8
Fluid	Air
Action	Double acting, single rod
Cushion	Rubber bumper
Rod end male thread	M5X0.8
Min. operating pressure	0.06 MPa
Max. operating pressure	0.7 MPa
Proof pressure	1.05 MPa
Lubrication	Non-lube
Fluid temp. min	-10 °C
Fluid temp. max	60 °C
Ambient temp. min	-10 °C
Ambient temp. max	60 °C
Weight	90 g

Specification values above are for model code CDU16-25D-M9N as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.

Product form

OVERVIEW Space-saving cylinder that can be directly installed on both sides of the cylinder With auto switch (CDU series: CDU,... Read more

SKU: CDU16-25D-M9N

$106.98 Excl. VAT

Ships within 5–10 business days

Ships from South Korea

Export packing available

Worldwide shipping

Secure payments Paypal
