Description

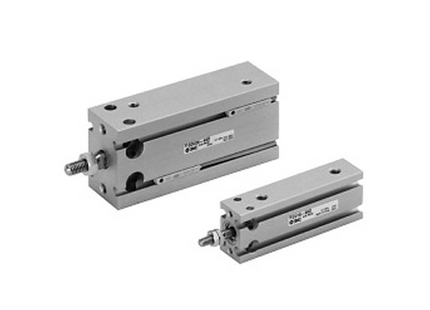

SMC CDUK20-50D-M9B — CUK Series, Free Mounting Cylinder, non rot, Double Acting, Single Rod. This code specifies 20mm bore, 50mm stroke, double acting, single rod.
Specification — CDUK20-50D-M9B
| Bore |
20mm |
| Port thread |
M5X0.8 Rc1/8 |
| Stroke |
50mm |
| Port size |
M5X0.8 |
| Fluid |
Air |
| Action |
Double acting, single rod |
| Cushion |
Rubber bumper |
| Rod end male thread |
M6X1.0 |
| Min. operating pressure |
0.08 MPa |
| Max. operating pressure |
0.7 MPa |
| Proof pressure |
1.05 MPa |
| Lubrication |
Non-lube |
| Fluid temp. min |
-10 °C |
| Fluid temp. max |
60 °C |
| Ambient temp. min |
-10 °C |
| Ambient temp. max |
60 °C |
| Weight |
233 g |
Specification values above are for model code CDUK20-50D-M9B as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
About the SMC CUK series
- Space-saving cylinder that can be directly installed on both sides of the cylinder
- With auto switch (CDU series: CDU, CDUW, CDUK, CDUKW, CDU-A, ZCDUK)
Supply from Korea
Genuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.
