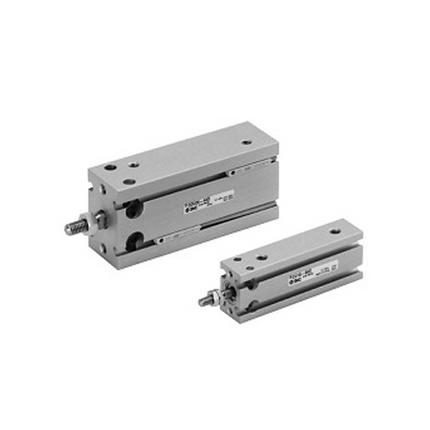

Name: SMC CUK Series, Free Mounting Cylinder, non rot, Double Acting, Single Rod, CDUK25-50D
Brand: SMC
SKU: CDUK25-50D
Price: 50.42 USD
Availability: InStock

SMC CUK Series, Free Mounting Cylinder, non rot, Double Acting, Single Rod, CDUK25-50D

VendorSMC

Description

OVERVIEW

Space-saving cylinder that can be directly installed on both sides of the cylinder
With auto switch (CDU series: CDU, CDUW, CDUK, CDUKW, CDU-A, ZCDUK)

Specification item	model symbol	Specification information
With auto switch	D	With auto switch
tube inner diameter	25	tube inner diameter 25mm
Types of port screws	-	M5X0.8 Rc1/8
cylinder stroke	50	cylinder stroke 50mm
auto switch	-	Without auto switch
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

Specification — CDUK25-50D

Bore	25mm
Port thread	M5X0.8 Rc1/8
Stroke	50mm
Auto switch	Without auto switch
Port size	M5X0.8
Fluid	Air
Action	Double acting, single rod
Cushion	Rubber bumper
Rod end male thread	M8X1.25
Min. operating pressure	0.08 MPa
Max. operating pressure	0.7 MPa
Proof pressure	1.05 MPa
Lubrication	Non-lube
Fluid temp. min	-10 °C
Fluid temp. max	60 °C
Ambient temp. min	-10 °C
Weight	370 g

Specification values above are for model code CDUK25-50D as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
