Description

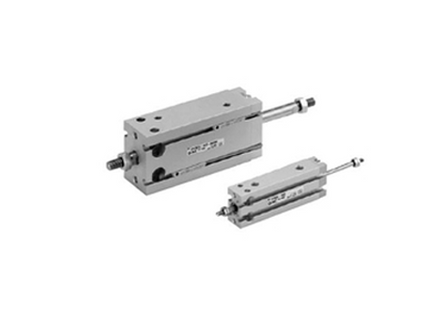

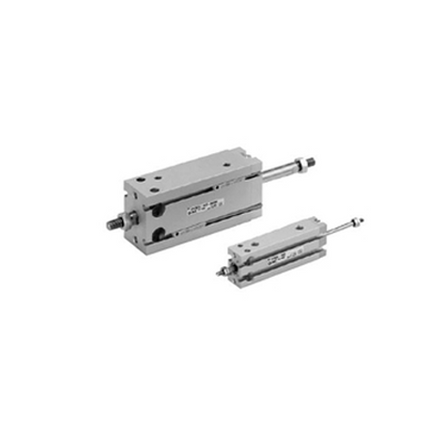

SMC CDUW32-100D-M9N — CUW Series, Free Mounting Cylinder, Double Acting, Double Rod. This code specifies 32mm bore, 100mm stroke, double acting, double rod.
Specification — CDUW32-100D-M9N
| Bore |
32mm |
| Port thread |
M5X0.8 Rc1/8 |
| Stroke |
100mm |
| Port size |
1/8 |
| Fluid |
Air |
| Action |
Double acting, double rod |
| Cushion |
Rubber bumper |
| Rod end male thread |
M10X1.25 |
| Min. operating pressure |
0.08 MPa |
| Max. operating pressure |
0.7 MPa |
| Proof pressure |
1.05 MPa |
| Lubrication |
Non-lube |
| Ambient temp. min |
-10 °C |
| Ambient temp. max |
60 °C |
| Piston speed min |
50 mm/s |
| Piston speed max |
500 mm/s |
| Weight |
1,000 g |
Specification values above are for model code CDUW32-100D-M9N as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
About the SMC CUW series
- Space-saving cylinder that can be directly installed on the cylinder side
- With auto switch (CDU series: CDU, CDUW, CDUK, CDUKW, CDU-A, ZCDUK)
Supply from Korea
Genuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.
