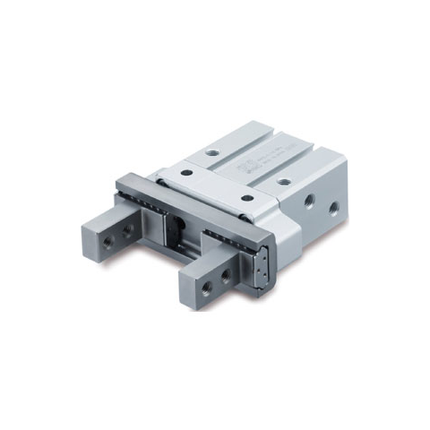

SMC JMHZ2 Series, Air Gripper, Parallel Type, Compact, JMHZ2-16C

Description

OVERVIEW



eries JMHZ2 is a compact parallel style air gripper.  High rigidity and precision are achieved by integrating the guide and finger in one piece.

  • Bore sizes: 8, 12, 16, and 20mm
  • Short overall length
  • Compact and lightweight
  • High rigidity and precision are achieved by integrating the guide and finger in one piece
  • High-precision linear guide
  • Repeatability: ±0.01mm





Applicable Auto Switches



Type Special function Electrical entry Indicator light Wiring (Output) Load voltage Auto switch model Lead wire length [m] Pre-wired
 connector		 Applicable load
DC AC Perpendicular In-line 0.5 (Nil) 1 (M) 3 (L) 5 (Z)
Solid state auto switch - Grommet Yes 3-wire (NPN) 24 V 5 V, 12 V - M9NV M9N O O O o o IC Circuit Relay, PLC
3-wire (PNP) M9PV M9P O O O o o
2-wire 12 V M9BV M9B O O O o o -
Diagnostic indication
(2-color indicator)		 3-wire (NPN) 5 V, 12 V M9NWV M9NW O O O o o IC Circuit
3-wire (PNP) M9PWV M9PW O O O o o
2-wire 12 V M9BWV M9BW O O O o o -
Water resistant
(2-color indicator)		 3-wire (NPN) 5 V, 12 V M9NAV*2 M9NA*2 o o O o o IC Circuit
3-wire (PNP) M9PAV*2 M9PA*2 o o O o o
2-wire 12 V M9BAV*2 M9BA*2 o o O o o -
Product form

OVERVIEW eries JMHZ2 is a compact parallel style air gripper.  High rigidity and precision are achieved by integrating the guide... Read more

SKU: JMHZ2-16C

$269.03 Excl. VAT

    • International express shipping
      (3–5 days, tracking included)
    • Shipping cost depends on destination & weight
    • Add 1 more item to reduce shipping cost per unit
    • Secure payments Paypal
    • Shipped today? Order within: Jan 23, 2026 17:00:00 +0900

    Description

    OVERVIEW



    eries JMHZ2 is a compact parallel style air gripper.  High rigidity and precision are achieved by integrating the guide and finger in one piece.

    • Bore sizes: 8, 12, 16, and 20mm
    • Short overall length
    • Compact and lightweight
    • High rigidity and precision are achieved by integrating the guide and finger in one piece
    • High-precision linear guide
    • Repeatability: ±0.01mm





    Applicable Auto Switches



    Type Special function Electrical entry Indicator light Wiring (Output) Load voltage Auto switch model Lead wire length [m] Pre-wired
     connector    		 Applicable load
    DC AC Perpendicular In-line 0.5 (Nil) 1 (M) 3 (L) 5 (Z)
    Solid state auto switch - Grommet Yes 3-wire (NPN) 24 V 5 V, 12 V - M9NV M9N O O O o o IC Circuit Relay, PLC
    3-wire (PNP) M9PV M9P O O O o o
    2-wire 12 V M9BV M9B O O O o o -
    Diagnostic indication
    (2-color indicator)    		 3-wire (NPN) 5 V, 12 V M9NWV M9NW O O O o o IC Circuit
    3-wire (PNP) M9PWV M9PW O O O o o
    2-wire 12 V M9BWV M9BW O O O o o -
    Water resistant
    (2-color indicator)    		 3-wire (NPN) 5 V, 12 V M9NAV*2 M9NA*2 o o O o o IC Circuit
    3-wire (PNP) M9PAV*2 M9PA*2 o o O o o
    2-wire 12 V M9BAV*2 M9BA*2 o o O o o -
