Description

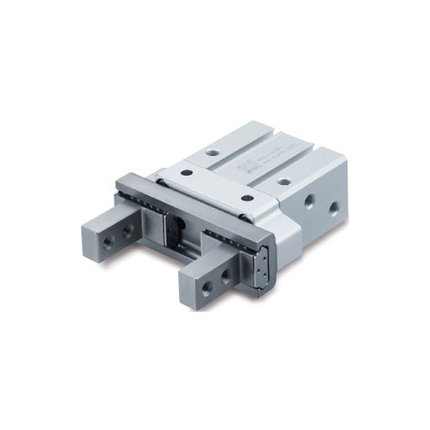

SMC JMHZ2-8C — JMHZ2 Series, Air Gripper, Parallel Type, Compact. This code specifies 8mm bore.
Specification — JMHZ2-8C
| Fluid |
Air |
| Port thread |
M |
| Min. operating pressure |
0.15 MPa |
| Max. operating pressure |
0.7 MPa |
| Lubrication |
Non-lube |
| Weight |
35 g |
Specification values above are for model code JMHZ2-8C as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
How to order
About the SMC JMHZ2 series
- Bore sizes: 8, 12, 16, and 20mm
- Short overall length
- Compact and lightweight
- High rigidity and precision are achieved by integrating the guide and finger in one piece
- High-precision linear guide
- Repeatability: ±0.01mm
Supply from Korea
Genuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.
