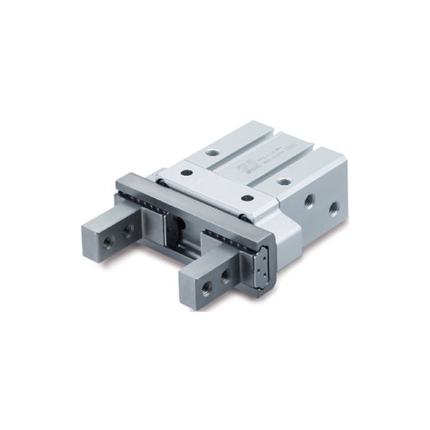

SMC JMHZ2 Series, Air Gripper, Parallel Type, Compact, JMHZ2-8D-M9NL

Description

OVERVIEW



eries JMHZ2 is a compact parallel style air gripper.  High rigidity and precision are achieved by integrating the guide and finger in one piece.

  • Bore sizes: 8, 12, 16, and 20mm
  • Short overall length
  • Compact and lightweight
  • High rigidity and precision are achieved by integrating the guide and finger in one piece
  • High-precision linear guide
  • Repeatability: ±0.01mm





Applicable Auto Switches



Type Special function Electrical entry Indicator light Wiring (Output) Load voltage Auto switch model Lead wire length [m] Pre-wired
 connector		 Applicable load
DC AC Perpendicular In-line 0.5 (Nil) 1 (M) 3 (L) 5 (Z)
Solid state auto switch - Grommet Yes 3-wire (NPN) 24 V 5 V, 12 V - M9NV M9N O O O o o IC Circuit Relay, PLC
3-wire (PNP) M9PV M9P O O O o o
2-wire 12 V M9BV M9B O O O o o -
Diagnostic indication
(2-color indicator)		 3-wire (NPN) 5 V, 12 V M9NWV M9NW O O O o o IC Circuit
3-wire (PNP) M9PWV M9PW O O O o o
2-wire 12 V M9BWV M9BW O O O o o -
Water resistant
(2-color indicator)		 3-wire (NPN) 5 V, 12 V M9NAV*2 M9NA*2 o o O o o IC Circuit
3-wire (PNP) M9PAV*2 M9PA*2 o o O o o
2-wire 12 V M9BAV*2 M9BA*2 o o O o o -
Product form

OVERVIEW eries JMHZ2 is a compact parallel style air gripper.  High rigidity and precision are achieved by integrating the guide... Read more

SKU: JMHZ2-8D-M9NL

$322.75 Excl. VAT

    • Quick delivery worldwide
    • Satisfied or refunded
    • Secure payments Paypal

      Description

      OVERVIEW



      eries JMHZ2 is a compact parallel style air gripper.  High rigidity and precision are achieved by integrating the guide and finger in one piece.

      • Bore sizes: 8, 12, 16, and 20mm
      • Short overall length
      • Compact and lightweight
      • High rigidity and precision are achieved by integrating the guide and finger in one piece
      • High-precision linear guide
      • Repeatability: ±0.01mm





      Applicable Auto Switches



      Type Special function Electrical entry Indicator light Wiring (Output) Load voltage Auto switch model Lead wire length [m] Pre-wired
       connector      		 Applicable load
      DC AC Perpendicular In-line 0.5 (Nil) 1 (M) 3 (L) 5 (Z)
      Solid state auto switch - Grommet Yes 3-wire (NPN) 24 V 5 V, 12 V - M9NV M9N O O O o o IC Circuit Relay, PLC
      3-wire (PNP) M9PV M9P O O O o o
      2-wire 12 V M9BV M9B O O O o o -
      Diagnostic indication
      (2-color indicator)      		 3-wire (NPN) 5 V, 12 V M9NWV M9NW O O O o o IC Circuit
      3-wire (PNP) M9PWV M9PW O O O o o
      2-wire 12 V M9BWV M9BW O O O o o -
      Water resistant
      (2-color indicator)      		 3-wire (NPN) 5 V, 12 V M9NAV*2 M9NA*2 o o O o o IC Circuit
      3-wire (PNP) M9PAV*2 M9PA*2 o o O o o
      2-wire 12 V M9BAV*2 M9BA*2 o o O o o -
