Description

OVERVIEW

Maximum weight reduced by 10% by changing the shape of the cover
Set the rod end bracket and swing support bracket attached part number (reducing the trouble of ordering separately)
Attach auto switch (MDB-Z series: MDB, MDBW, MDBK, MDBKW, MDBB, MDBQ)

Specification item	model symbol	Specification information
With auto switch	D	With auto switch
installation support	C	Single clevis type
tube inner diameter	63	Bore size 63mm
Types of port screws	-	Rc
cylinder stroke	200	cylinder stroke 200mm
Cylinder additional symbol	-	No bellows, air cushion
Stroke adjustment symbol	-	doesn't exist
dual stroke mark	-	No dual stroke mark
cylinder stroke 2	-	Cylinder stroke 2 None
Cylinder additional symbol 2	-	No bellows, air cushion
Attachment 1	-	no metal fittings
Accessories 2	-	no metal fittings
auto switch	M9NL	Solid-state auto switch, grommet, with light, 3-wire type (NPN), lateral entry, lead wire 3 m, applied voltage: DC5V, 12V, 24V (DC4.5 to 28V)
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

Product form

OVERVIEW Maximum weight reduced by 10% by changing the shape of the cover Set the rod end bracket and swing... Read more

SKU: MDBC63-200Z-M9NL

$226.43 Excl. VAT

Ships within 5–10 business days

Ships from South Korea

Export packing available

Worldwide shipping

Secure payments Paypal

Description

OVERVIEW

Maximum weight reduced by 10% by changing the shape of the cover
Set the rod end bracket and swing support bracket attached part number (reducing the trouble of ordering separately)
Attach auto switch (MDB-Z series: MDB, MDBW, MDBK, MDBKW, MDBB, MDBQ)

Specification item	model symbol	Specification information
With auto switch	D	With auto switch
installation support	C	Single clevis type
tube inner diameter	63	Bore size 63mm
Types of port screws	-	Rc
cylinder stroke	200	cylinder stroke 200mm
Cylinder additional symbol	-	No bellows, air cushion
Stroke adjustment symbol	-	doesn't exist
dual stroke mark	-	No dual stroke mark
cylinder stroke 2	-	Cylinder stroke 2 None
Cylinder additional symbol 2	-	No bellows, air cushion
Attachment 1	-	no metal fittings
Accessories 2	-	no metal fittings
auto switch	M9NL	Solid-state auto switch, grommet, with light, 3-wire type (NPN), lateral entry, lead wire 3 m, applied voltage: DC5V, 12V, 24V (DC4.5 to 28V)
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

Reviews

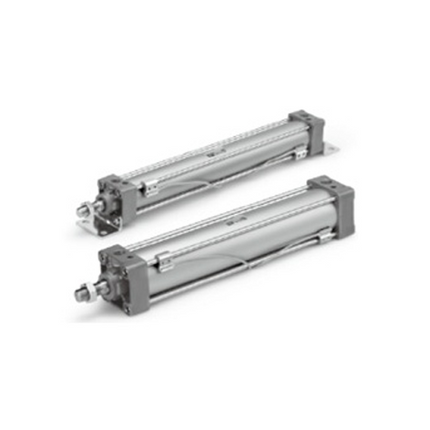

Name: SMC MB-Z Series Tie-Rod Cylinder. Double Acting, Single Rod, MDBC63-200Z-M9NL
