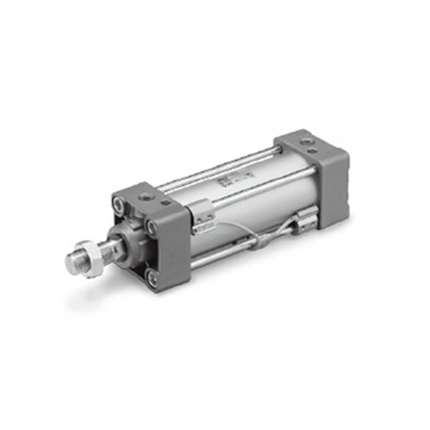

Name: SMC MBK-Z Series Tie-Rod Cylinder. Non-Rotating, Double Acting, Single Rod, MBKB40-75Z
Brand: SMC
SKU: MBKB40-75Z
Price: 87.39 USD
Availability: InStock

SMC MBK-Z Series Tie-Rod Cylinder. Non-Rotating, Double Acting, Single Rod, MBKB40-75Z

VendorSMC

Description

OVERVIEW

Maximum weight reduced by 10% by changing the shape of the cover
Set the rod end bracket and swing support bracket attached part number (reducing the trouble of ordering separately)
Attach auto switch (MDB-Z series: MDB, MDBW, MDBK, MDBKW, MDBB, MDBQ)

Specification item	model symbol	Specification information
With auto switch	-	Without auto switch
Mounting support type	B	Basic type
tube inner diameter	40	tube inner diameter 40mm
Types of port screws	-	Rc
cylinder stroke	75	Cylinder stroke 75mm
additional sign	-	No bellows, air cushion
Stroke adjustment symbol	-	doesn't exist
dual stroke mark	-	No dual stroke mark
cylinder stroke 2	-	Cylinder stroke 2 None
Additional symbol 2	-	No bellows, air cushion
Attachment 1	-	no metal fittings
Accessories 2	-	no metal fittings
auto switch	-	Without auto switch
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

Specification — MBKB40-75Z

Bore	40mm
Port thread	Rc
Stroke	75mm
Auto switch	Without auto switch
Port size	1/4
Fluid	Air
Action	Double acting
Rod end male thread	M14X1.5
Min. operating pressure	0.05 MPa
Max. operating pressure	1.0 MPa
Proof pressure	1.5 MPa
Fluid temp. min	-10 ℃
Fluid temp. max	70 ℃
Ambient temp. min	-10 ℃
Ambient temp. max	70 ℃
Lubrication	Non-lube
Weight	865 g

Specification values above are for model code MBKB40-75Z as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
