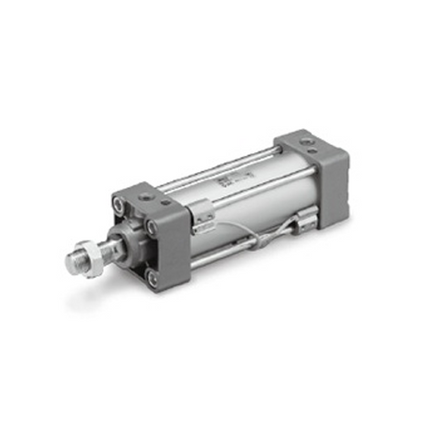

SMC MBK-Z Series Tie-Rod Cylinder. Non-Rotating, Double Acting, Single Rod, MDBKB40-25Z

Description

OVERVIEW


  •  Maximum weight reduced by 10% by changing the shape of the cover
  • Set the rod end bracket and swing support bracket attached part number (reducing the trouble of ordering separately)
  • Attach auto switch (MDB-Z series: MDB, MDBW, MDBK, MDBKW, MDBB, MDBQ)



Specification item model symbol Specification information
With auto switch D With auto switch
Mounting support type B Basic type
tube inner diameter 40 tube inner diameter 40mm
Types of port screws - Rc
cylinder stroke 25 cylinder stroke 25mm
additional sign - No bellows, air cushion
Stroke adjustment symbol - doesn't exist
dual stroke mark - No dual stroke mark
cylinder stroke 2 - Cylinder stroke 2 None
Additional symbol 2 - No bellows, air cushion
Attachment 1 - no metal fittings
Accessories 2 - no metal fittings
auto switch - Without auto switch
Auto switch additional symbol - 2 with or without
Custom made specifications - standard

Product form

OVERVIEW  Maximum weight reduced by 10% by changing the shape of the cover Set the rod end bracket and swing... Read more

SKU: MDBKB40-25Z

$111.37 Excl. VAT

    • Quick delivery worldwide
    • Satisfied or refunded
    • Secure payments Paypal
    • Shipped today? Order within: Nov 25, 2024 17:00:00 +0900

    Description

    OVERVIEW


    •  Maximum weight reduced by 10% by changing the shape of the cover
    • Set the rod end bracket and swing support bracket attached part number (reducing the trouble of ordering separately)
    • Attach auto switch (MDB-Z series: MDB, MDBW, MDBK, MDBKW, MDBB, MDBQ)



    Specification item model symbol Specification information
    With auto switch D With auto switch
    Mounting support type B Basic type
    tube inner diameter 40 tube inner diameter 40mm
    Types of port screws - Rc
    cylinder stroke 25 cylinder stroke 25mm
    additional sign - No bellows, air cushion
    Stroke adjustment symbol - doesn't exist
    dual stroke mark - No dual stroke mark
    cylinder stroke 2 - Cylinder stroke 2 None
    Additional symbol 2 - No bellows, air cushion
    Attachment 1 - no metal fittings
    Accessories 2 - no metal fittings
    auto switch - Without auto switch
    Auto switch additional symbol - 2 with or without
    Custom made specifications - standard
