Description

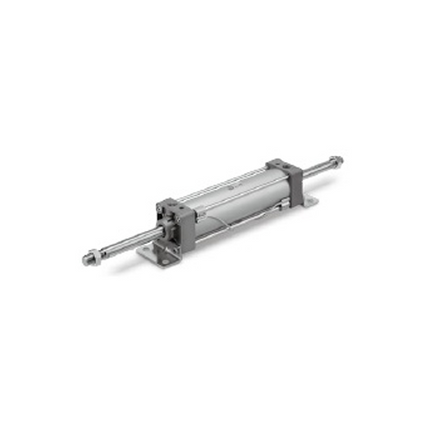

SMC MBWB32-150Z — MBW-Z Series Tie-Rod Cylinder. Non-Rotating, Double Acting, Double Rod. This code specifies 32mm bore, 150mm stroke, double acting, without auto switch.
Specification — MBWB32-150Z
| Mounting |
Basic |
| Bore |
32mm |
| Port thread |
Rc |
| Stroke |
150mm |
| Auto switch |
Without auto switch |
| Port size |
1/8 |
| Fluid |
Air |
| Action |
Double acting |
| Rod end male thread |
M10X1.25 |
| Min. operating pressure |
0.05 MPa |
| Max. operating pressure |
1.0 MPa |
| Proof pressure |
1.5 MPa |
| Ambient temp. min |
-10 ℃ |
| Ambient temp. max |
70 ℃ |
| Lubrication |
Non-lube |
| Piston speed min |
50 mm/s |
| Weight |
1,010 g |
Specification values above are for model code MBWB32-150Z as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
About the SMC MBW-Z series
- Maximum weight reduced by 10% by changing the shape of the cover
- Set the rod end bracket and swing support bracket attached part number (reducing the trouble of ordering separately)
- Attach auto switch (MDB-Z series: MDB, MDBW, MDBK, MDBKW, MDBB, MDBQ)
Supply from Korea
Genuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.
