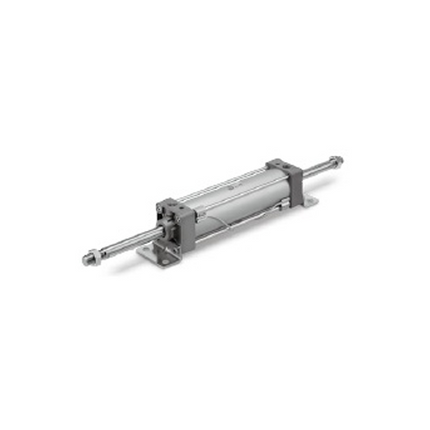

Name: SMC MBW-Z Series Tie-Rod Cylinder. Non-Rotating, Double Acting, Double Rod, MDBWB80-200Z
Brand: SMC
SKU: MDBWB80-200Z
Price: 220.71 USD
Availability: InStock

SMC MBW-Z Series Tie-Rod Cylinder. Non-Rotating, Double Acting, Double Rod, MDBWB80-200Z

VendorSMC

Description

OVERVIEW

Maximum weight reduced by 10% by changing the shape of the cover
Set the rod end bracket and swing support bracket attached part number (reducing the trouble of ordering separately)
Attach auto switch (MDB-Z series: MDB, MDBW, MDBK, MDBKW, MDBB, MDBQ)

Specification item	model symbol	Specification information
With auto switch	D	With auto switch
installation support	B	Basic type
tube inner diameter	80	Tube inner diameter 80mm
Types of port screws	-	Rc
cylinder stroke	200	cylinder stroke 200mm
Cylinder additional symbol	-	No bellows, air cushion
auto switch	-	Without auto switch
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

Specification — MDBWB80-200Z

Mounting	Basic
Bore	80mm
Port thread	Rc
Stroke	200mm
Auto switch	Without auto switch
Port size	3/8
Fluid	Air
Action	Double acting
Rod end male thread	M22X1.5
Min. operating pressure	0.05 MPa
Max. operating pressure	1.0 MPa
Proof pressure	1.5 MPa
Fluid temp. min	-10 ℃
Fluid temp. max	60 ℃
Ambient temp. min	-10 ℃
Ambient temp. max	60 ℃
Weight	5,000 g

Specification values above are for model code MDBWB80-200Z as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
