SMC MDHR3 Series, Air Gripper, 3 Finger, Rotary Actuator with Auto Switch, MDHR3-10R

Description

OVERVIEW

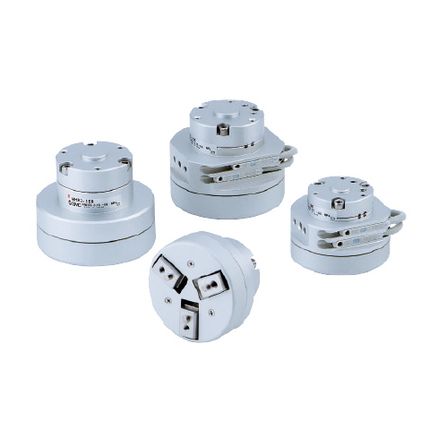

The MDHR3 Series, 3-finger grippers are optimal for gripping spherical, cylindrical or round work pieces. Its cross roller guide provides smooth actuation for high precision and repeatability making it suitable for end-of-arm (end effector) or pick and place applications.

  • Double acting, rotary actuated
  • Bore sizes: 10, 15 mm
  • High repeatability: ±0.01 mm
  • Mounting: axial, lateral and vertical sides
  • Auto switch capable





Applicable Auto Switches



Type Special function Electrical entry Indicator light Wiring (Output) Load voltage Auto switch model Lead wire length [m] Pre-wired
 connector		 Applicable load
DC AC Perpendicular In-line 0.5 (Nil) 1 (M) 3 (L) 5 (Z)
Solid state auto switch - Grommet Yes 3-wire (NPN) 24 V 5 V, 12 V - M9NV M9N O O O o o IC Circuit Relay, PLC
3-wire (PNP) M9PV M9P O O O o o
2-wire 12 V M9BV M9B O O O o o -
Diagnostic indication
(2-color indicator)		 3-wire (NPN) 5 V, 12 V M9NWV M9NW O O O o o IC Circuit
3-wire (PNP) M9PWV M9PW O O O o o
2-wire 12 V M9BWV M9BW O O O o o -
Water resistant
(2-color indicator)		 3-wire (NPN) 5 V, 12 V M9NAV** M9NA** o o O o o IC Circuit
3-wire (PNP) M9PAV** M9PA** o o O o o
2-wire 12 V M9BAV** M9BA** o o O o o -








Product form

OVERVIEW The MDHR3 Series, 3-finger grippers are optimal for gripping spherical, cylindrical or round work pieces. Its cross roller guide... Read more

SKU: MDHR3-10R

$397.84 Excl. VAT

    • Quick delivery worldwide
    • Satisfied or refunded
    • Secure payments Paypal

      Description

      OVERVIEW



      The MDHR3 Series, 3-finger grippers are optimal for gripping spherical, cylindrical or round work pieces. Its cross roller guide provides smooth actuation for high precision and repeatability making it suitable for end-of-arm (end effector) or pick and place applications.

      • Double acting, rotary actuated
      • Bore sizes: 10, 15 mm
      • High repeatability: ±0.01 mm
      • Mounting: axial, lateral and vertical sides
      • Auto switch capable





      Applicable Auto Switches



      Type Special function Electrical entry Indicator light Wiring (Output) Load voltage Auto switch model Lead wire length [m] Pre-wired
       connector      		 Applicable load
      DC AC Perpendicular In-line 0.5 (Nil) 1 (M) 3 (L) 5 (Z)
      Solid state auto switch - Grommet Yes 3-wire (NPN) 24 V 5 V, 12 V - M9NV M9N O O O o o IC Circuit Relay, PLC
      3-wire (PNP) M9PV M9P O O O o o
      2-wire 12 V M9BV M9B O O O o o -
      Diagnostic indication
      (2-color indicator)      		 3-wire (NPN) 5 V, 12 V M9NWV M9NW O O O o o IC Circuit
      3-wire (PNP) M9PWV M9PW O O O o o
      2-wire 12 V M9BWV M9BW O O O o o -
      Water resistant
      (2-color indicator)      		 3-wire (NPN) 5 V, 12 V M9NAV** M9NA** o o O o o IC Circuit
      3-wire (PNP) M9PAV** M9PA** o o O o o
      2-wire 12 V M9BAV** M9BA** o o O o o -
