SMC MK2T Series Rotary Clamp Cylinder Double Guide Type, MK2TB32-20R-A93

Description

OVERVIEW

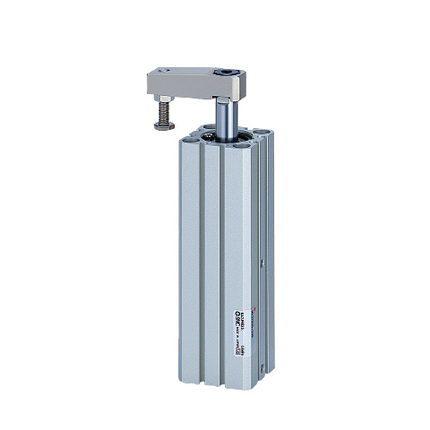

Combining compact cylinder size and rotational capability, the MK2 cylinder is designed for heavy duty clamping applications, with an available integrated arm that swings out of the way when the cylinder is extended. 90deg. clockwise or counter clockwise rotation is available, and clamping arms with adjustment screw are standard options. MK2 is available in 6 bore sizes from 20mm to 63mm and stokes from 10 mm to 50 mm.

  • The double guide type adopts a guide roller in the rotating mechanism to improve non-rotating accuracy.



Specification item model symbol Specification information
installation support B Through-hole/double-end tap common (standard)
tube inner diameter 32 Bore size 32mm
cylinder port - M thread (ø20 to ø25), Rc (ø32 to ø63)
clamp stroke 20 20mm
direction of rotation R turn right
body options - Standard (female thread)
auto switch A93 Reed auto switch, grommet, with light, 2-wire type, lateral entry, lead wire 0.5 m, applied voltage: DC24V, AC100V
Auto switch additional symbol - 2 with or without
Custom made specifications - standard




Product form

OVERVIEW Combining compact cylinder size and rotational capability, the MK2 cylinder is designed for heavy duty clamping applications, with an... Read more

SKU: MK2TB32-20R-A93

$308.91 Excl. VAT

    • Quick delivery worldwide
    • Satisfied or refunded
    • Secure payments Paypal
    • Shipped today? Order within: Jul 21, 2024 17:00:00 +0900

    Description

    OVERVIEW


    Combining compact cylinder size and rotational capability, the MK2 cylinder is designed for heavy duty clamping applications, with an available integrated arm that swings out of the way when the cylinder is extended. 90deg. clockwise or counter clockwise rotation is available, and clamping arms with adjustment screw are standard options. MK2 is available in 6 bore sizes from 20mm to 63mm and stokes from 10 mm to 50 mm.

    • The double guide type adopts a guide roller in the rotating mechanism to improve non-rotating accuracy.



    Specification item model symbol Specification information
    installation support B Through-hole/double-end tap common (standard)
    tube inner diameter 32 Bore size 32mm
    cylinder port - M thread (ø20 to ø25), Rc (ø32 to ø63)
    clamp stroke 20 20mm
    direction of rotation R turn right
    body options - Standard (female thread)
    auto switch A93 Reed auto switch, grommet, with light, 2-wire type, lateral entry, lead wire 0.5 m, applied voltage: DC24V, AC100V
    Auto switch additional symbol - 2 with or without
    Custom made specifications - standard
