Description

OVERVIEW

Combining compact cylinder size and rotational capability, the MK2 cylinder is designed for heavy duty clamping applications, with an available integrated arm that swings out of the way when the cylinder is extended. 90deg. clockwise or counter clockwise rotation is available, and clamping arms with adjustment screw are standard options. MK2 is available in 6 bore sizes from 20mm to 63mm and stokes from 10 mm to 50 mm.

The double guide type adopts a guide roller in the rotating mechanism to improve non-rotating accuracy.

Specification item	model symbol	Specification information
installation support	B	Through-hole/double-end tap common (standard)
tube inner diameter	32	Bore size 32mm
cylinder port	-	M thread (ø20 to ø25), Rc (ø32 to ø63)
clamp stroke	20	20mm
direction of rotation	R	turn right
body options	N	Arm attached
auto switch	-	Without auto switch Built-in magnet
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

Product form

OVERVIEW Combining compact cylinder size and rotational capability, the MK2 cylinder is designed for heavy duty clamping applications, with an... Read more

SKU: MK2TB32-20RN

$270.17 Excl. VAT

Quick delivery worldwide

Satisfied or refunded

Secure payments Paypal

Shipped today? Order within: Nov 24, 2024 17:00:00 +0900

Description

OVERVIEW

Combining compact cylinder size and rotational capability, the MK2 cylinder is designed for heavy duty clamping applications, with an available integrated arm that swings out of the way when the cylinder is extended. 90deg. clockwise or counter clockwise rotation is available, and clamping arms with adjustment screw are standard options. MK2 is available in 6 bore sizes from 20mm to 63mm and stokes from 10 mm to 50 mm.

The double guide type adopts a guide roller in the rotating mechanism to improve non-rotating accuracy.

Specification item	model symbol	Specification information
installation support	B	Through-hole/double-end tap common (standard)
tube inner diameter	32	Bore size 32mm
cylinder port	-	M thread (ø20 to ø25), Rc (ø32 to ø63)
clamp stroke	20	20mm
direction of rotation	R	turn right
body options	N	Arm attached
auto switch	-	Without auto switch Built-in magnet
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

Reviews

Name: SMC MK2T Series Rotary Clamp Cylinder Double Guide Type, MK2TB32-20RN
Brand: SMC
SKU: MK2TB32-20RN
Price: 270.17 USD

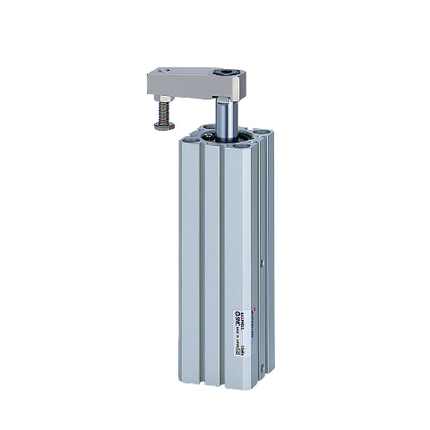

SMC MK2T Series Rotary Clamp Cylinder Double Guide Type, MK2TB32-20RN
