Description

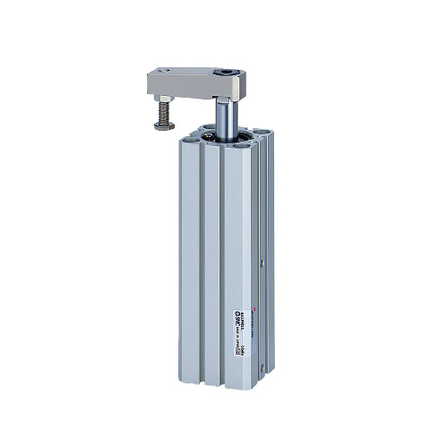

SMC MK2TB50-20R-M9N — MK2T Series Rotary Clamp Cylinder Double Guide Type. This code specifies 50mm bore, 20mm stroke, double acting.
Specification — MK2TB50-20R-M9N
| Bore |
50mm |
| Fluid |
Air |
| Action |
Double acting |
| Cushion |
Rubber bumper |
| Rod end male thread |
M12X1.75 |
| Min. operating pressure |
0.1 MPa |
| Max. operating pressure |
1.0 MPa |
| Proof pressure |
1.5 MPa |
| Fluid temp. min |
-10 °C |
| Fluid temp. max |
60 °C |
| Ambient temp. min |
-10 °C |
| Ambient temp. max |
60 °C |
| Lubrication |
Non-lube |
| Piston speed min |
50 mm/s |
| Piston speed max |
200 mm/s |
| Rod diameter |
20 mm |
| Weight |
2,000 g |
Specification values above are for model code MK2TB50-20R-M9N as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
About the SMC MK2T series
- The double guide type adopts a guide roller in the rotating mechanism to improve non-rotating accuracy.
Supply from Korea
Genuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.
