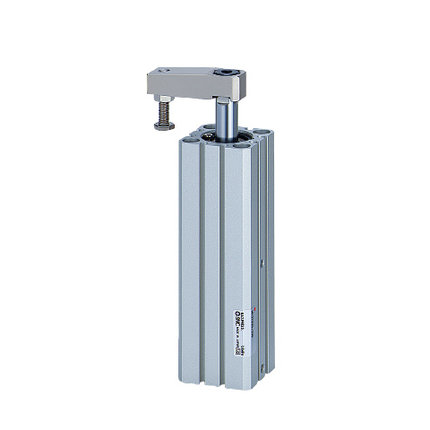

SMC MK2T Series Rotary Clamp Cylinder Double Guide Type, MK2TG20-10RN

Description

OVERVIEW


Combining compact cylinder size and rotational capability, the MK2 cylinder is designed for heavy duty clamping applications, with an available integrated arm that swings out of the way when the cylinder is extended. 90deg. clockwise or counter clockwise rotation is available, and clamping arms with adjustment screw are standard options. MK2 is available in 6 bore sizes from 20mm to 63mm and stokes from 10 mm to 50 mm.

  • The double guide type adopts a guide roller in the rotating mechanism to improve non-rotating accuracy.



Specification item model symbol Specification information
installation support G Head side flange type
tube inner diameter 20 tube inner diameter 20mm
cylinder port - M thread (ø20 to ø25), Rc (ø32 to ø63)
clamp stroke 10 10mm
direction of rotation R turn right
body options N Arm attached
auto switch - Without auto switch Built-in magnet
Auto switch additional symbol - 2 with or without
Custom made specifications - standard




Product form

OVERVIEW Combining compact cylinder size and rotational capability, the MK2 cylinder is designed for heavy duty clamping applications, with an... Read more

SKU: MK2TG20-10RN

$240.17 Excl. VAT

    • Quick delivery worldwide
    • Satisfied or refunded
    • Secure payments Paypal

      Description

      OVERVIEW


      Combining compact cylinder size and rotational capability, the MK2 cylinder is designed for heavy duty clamping applications, with an available integrated arm that swings out of the way when the cylinder is extended. 90deg. clockwise or counter clockwise rotation is available, and clamping arms with adjustment screw are standard options. MK2 is available in 6 bore sizes from 20mm to 63mm and stokes from 10 mm to 50 mm.

      • The double guide type adopts a guide roller in the rotating mechanism to improve non-rotating accuracy.



      Specification item model symbol Specification information
      installation support G Head side flange type
      tube inner diameter 20 tube inner diameter 20mm
      cylinder port - M thread (ø20 to ø25), Rc (ø32 to ø63)
      clamp stroke 10 10mm
      direction of rotation R turn right
      body options N Arm attached
      auto switch - Without auto switch Built-in magnet
      Auto switch additional symbol - 2 with or without
      Custom made specifications - standard
