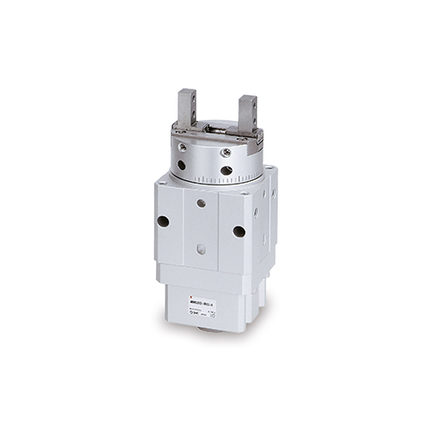

SMC MRHQ Rotary Gripper Series, Parallel Type, 2 Finger, MRHQ25D-180S-M9BVL

Description

OVERVIEW



The MRHQ series is a rotary gripper suitable for holding and reversing work pieces on transfer lines. The compact integration of gripping and rotating functions eliminates the peripheral piping and wiring of the previous product (rotary table + adapter + air gripper). The length of the MRHQ series has been reduced by approximately 20% compared with the previous products.

  • Rotary Gripper.
  • Size: 10, 16, 20, 25.
  • Modular construction.
  • Can be mounted from five directions: two ends and three sides of the body.
  • Auto switch capable.





Specification — MRHQ25D-180S-M9BVL

Action Double acting
Fluid Air
Port size M5X0.8
Port thread M
Min. operating pressure 0.1 MPa
Max. operating pressure 0.7 MPa
Allowable kinetic energy 0.074 J
Weight 1,000 g

Specification values above are for model code MRHQ25D-180S-M9BVL as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.

Product form

OVERVIEW The MRHQ series is a rotary gripper suitable for holding and reversing work pieces on transfer lines. The compact... Read more

SKU: MRHQ25D-180S-M9BVL

$717.62 Excl. VAT

    • Ships within 5–10 business days
    • Ships from South Korea
    • Export packing available
    • Worldwide shipping
    • Secure payments Paypal

    Description

    OVERVIEW



    The MRHQ series is a rotary gripper suitable for holding and reversing work pieces on transfer lines. The compact integration of gripping and rotating functions eliminates the peripheral piping and wiring of the previous product (rotary table + adapter + air gripper). The length of the MRHQ series has been reduced by approximately 20% compared with the previous products.

    • Rotary Gripper.
    • Size: 10, 16, 20, 25.
    • Modular construction.
    • Can be mounted from five directions: two ends and three sides of the body.
    • Auto switch capable.





    Specification — MRHQ25D-180S-M9BVL

    Action Double acting
    Fluid Air
    Port size M5X0.8
    Port thread M
    Min. operating pressure 0.1 MPa
    Max. operating pressure 0.7 MPa
    Allowable kinetic energy 0.074 J
    Weight 1,000 g

    Specification values above are for model code MRHQ25D-180S-M9BVL as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
