Description

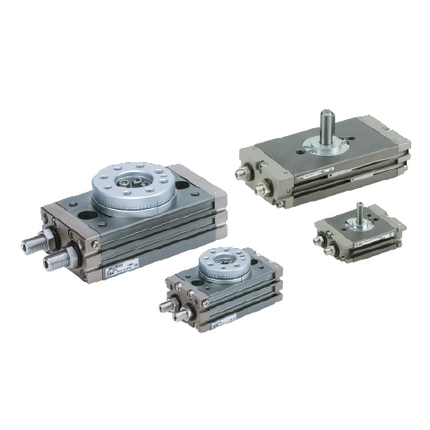

SMC MSQXB50A-M9B — MSQX Series Low Speed Rotary Table Rack and Pinion Type. This code specifies built-in magnet.
Specification — MSQXB50A-M9B
| Magnet |
Built-in magnet |
| Fluid |
Air |
| Min. operating pressure |
0.1 MPa |
| Max. operating pressure |
1 MPa |
| Lubrication |
Non-lube |
| Allowable kinetic energy |
0.081 J |
| Weight |
2,000 g |
Specification values above are for model code MSQXB50A-M9B as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
How to order
About the SMC MSQX series
- Low-speed transfer of workpieces possible (5s/90)
- With auto switch (CDRQ2X series: CDRQ2X)
Supply from Korea
Genuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.
