OVERVIEW

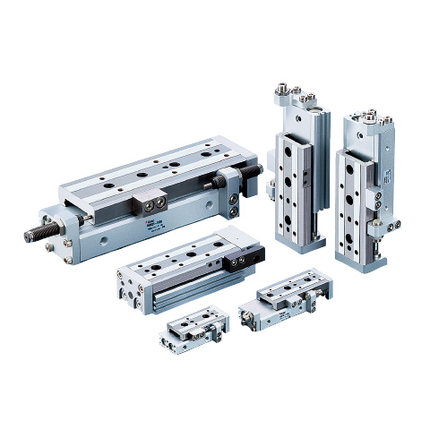

The MXQ precision slide is ideal for applications requiring closely held parallelism and perpendicular specifications. The table and bearing guide are integrated into one precisely machined part made of hardened stainless steel. This minimizes tolerance stack-up associated with multiple part assemblies, and affords height tolerances of +/-0.05mm. The bearing is a recirculating linear guide in a stainless steel housing.

Guide rail and table integrated
High rigidity and high accuracy by adopting a circular linear guide

Specification item	model symbol	Specification information
tube inner diameter	12	tube inner diameter 12mm
Types of port screws	-	M screw, Rc
symmetrical	-	standard type
cylinder stroke	20	cylinder stroke 20mm
adjustment options	A	Both ends adjustment unit
function options	-	standard
auto switch	M9PL	Solid-state auto switch, grommet, with light, 3-wire type (PNP), lateral entry, lead wire 3 m, applied voltage: DC5V, 12V, 24V (DC4.5 to 28V)
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

Product form

OVERVIEW The MXQ precision slide is ideal for applications requiring closely held parallelism and perpendicular specifications. The table and bearing... Read more

SKU: MXQ12-20A-M9PL

$393.01 Excl. VAT

Ships within 5–10 business days

Ships from South Korea

Export packing available

Worldwide shipping

Secure payments Paypal
