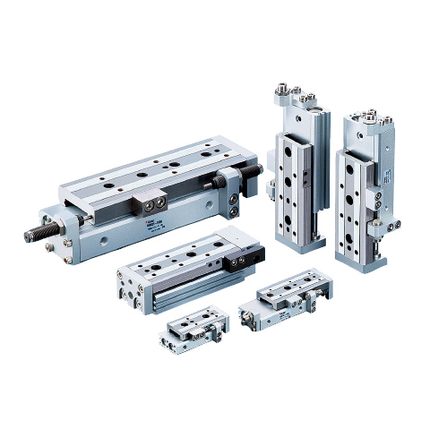

Name: SMC MXQ Series Air Slide Table, Guided Cylinder, MXQ12-20AS-M9BL
Brand: SMC
SKU: MXQ12-20AS-M9BL
Price: 311.7 USD
Availability: InStock

SMC MXQ Series Air Slide Table, Guided Cylinder, MXQ12-20AS-M9BL

VendorSMC

Description

OVERVIEW

The MXQ precision slide is ideal for applications requiring closely held parallelism and perpendicular specifications. The table and bearing guide are integrated into one precisely machined part made of hardened stainless steel. This minimizes tolerance stack-up associated with multiple part assemblies, and affords height tolerances of +/-0.05mm. The bearing is a recirculating linear guide in a stainless steel housing.

Guide rail and table integrated
High rigidity and high accuracy by adopting a circular linear guide

Specification item	model symbol	Specification information
tube inner diameter	12	tube inner diameter 12mm
Types of port screws	-	M screw, Rc
symmetrical	-	standard type
cylinder stroke	20	cylinder stroke 20mm
adjustment options	AS	Forward diagnosis adjustment unit
function options	-	standard
auto switch	M9BL	Solid-state auto switch, grommet, with light, 2-wire type, lateral entry, lead wire 3 m, applied voltage: DC24V (DC10 to 28V)
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

Specification — MXQ12-20AS-M9BL

Bore	12mm
Stroke	20mm
Magnet	Built-in magnet
Mounting	Basic
Port size	M5X0.8
Fluid	Air
Action	Double acting
Min. operating pressure	0.15 MPa
Max. operating pressure	0.7 MPa
Proof pressure	1.05 MPa
Lubrication	Non-lube
Weight	441 g

Specification values above are for model code MXQ12-20AS-M9BL as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
