Description

OVERVIEW

The MXQ precision slide is ideal for applications requiring closely held parallelism and perpendicular specifications. The table and bearing guide are integrated into one precisely machined part made of hardened stainless steel. This minimizes tolerance stack-up associated with multiple part assemblies, and affords height tolerances of +/-0.05mm. The bearing is a recirculating linear guide in a stainless steel housing.

Guide rail and table integrated
High rigidity and high accuracy by adopting a circular linear guide

Specification item	model symbol	Specification information
tube inner diameter	12	tube inner diameter 12mm
Types of port screws	-	M screw, Rc
symmetrical	-	standard type
cylinder stroke	50	cylinder stroke 50mm
adjustment options	A	Both ends adjustment unit
function options	-	standard
auto switch	M9PL	Solid-state auto switch, grommet, with light, 3-wire type (PNP), lateral entry, lead wire 3 m, applied voltage: DC5V, 12V, 24V (DC4.5 to 28V)
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

Product form

OVERVIEW The MXQ precision slide is ideal for applications requiring closely held parallelism and perpendicular specifications. The table and bearing... Read more

SKU: MXQ12-50A-M9PL

$718.55 Excl. VAT

Quick delivery worldwide

Satisfied or refunded

Secure payments Paypal

Shipped today? Order within: Nov 18, 2024 17:00:00 +0900

Description

OVERVIEW

The MXQ precision slide is ideal for applications requiring closely held parallelism and perpendicular specifications. The table and bearing guide are integrated into one precisely machined part made of hardened stainless steel. This minimizes tolerance stack-up associated with multiple part assemblies, and affords height tolerances of +/-0.05mm. The bearing is a recirculating linear guide in a stainless steel housing.

Guide rail and table integrated
High rigidity and high accuracy by adopting a circular linear guide

Specification item	model symbol	Specification information
tube inner diameter	12	tube inner diameter 12mm
Types of port screws	-	M screw, Rc
symmetrical	-	standard type
cylinder stroke	50	cylinder stroke 50mm
adjustment options	A	Both ends adjustment unit
function options	-	standard
auto switch	M9PL	Solid-state auto switch, grommet, with light, 3-wire type (PNP), lateral entry, lead wire 3 m, applied voltage: DC5V, 12V, 24V (DC4.5 to 28V)
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

Reviews

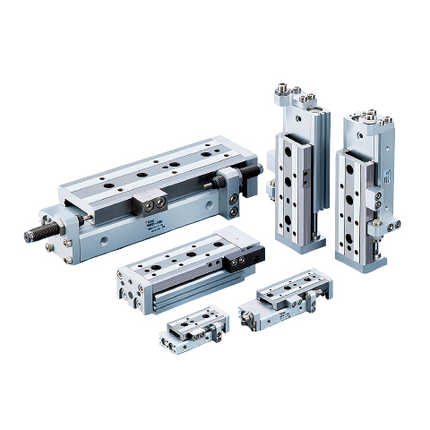

Name: SMC MXQ Series Air Slide Table, Guided Cylinder, MXQ12-50A-M9PL
Brand: SMC
SKU: MXQ12-50A-M9PL
Price: 718.55 USD

SMC MXQ Series Air Slide Table, Guided Cylinder, MXQ12-50A-M9PL

0 out of 5 stars

This product has no reviews yet
