Description

OVERVIEW

The MXQ precision slide is ideal for applications requiring closely held parallelism and perpendicular specifications. The table and bearing guide are integrated into one precisely machined part made of hardened stainless steel. This minimizes tolerance stack-up associated with multiple part assemblies, and affords height tolerances of +/-0.05mm. The bearing is a recirculating linear guide in a stainless steel housing.

Guide rail and table integrated
High rigidity and high accuracy by adopting a circular linear guide

Specification item	model symbol	Specification information
tube inner diameter	6	tube inner diameter 6mm
Types of port screws	-	M screw, Rc
symmetrical	-	standard type
cylinder stroke	30	cylinder stroke 30mm
adjustment options	-	doesn't exist
function options	-	standard
auto switch	M9NL	Solid-state auto switch, grommet, with light, 3-wire type (NPN), lateral entry, lead wire 3 m, applied voltage: DC5V, 12V, 24V (DC4.5 to 28V)
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

Product form

OVERVIEW The MXQ precision slide is ideal for applications requiring closely held parallelism and perpendicular specifications. The table and bearing... Read more

SKU: MXQ6-30-M9NL

$429.96 Excl. VAT

International express shipping
(3–5 days, tracking included)

Shipping cost depends on destination & weight

Add 1 more item to reduce shipping cost per unit

Secure payments Paypal

Shipped today? Order within: Jan 23, 2026 17:00:00 +0900

Description

OVERVIEW

The MXQ precision slide is ideal for applications requiring closely held parallelism and perpendicular specifications. The table and bearing guide are integrated into one precisely machined part made of hardened stainless steel. This minimizes tolerance stack-up associated with multiple part assemblies, and affords height tolerances of +/-0.05mm. The bearing is a recirculating linear guide in a stainless steel housing.

Guide rail and table integrated
High rigidity and high accuracy by adopting a circular linear guide

Specification item	model symbol	Specification information
tube inner diameter	6	tube inner diameter 6mm
Types of port screws	-	M screw, Rc
symmetrical	-	standard type
cylinder stroke	30	cylinder stroke 30mm
adjustment options	-	doesn't exist
function options	-	standard
auto switch	M9NL	Solid-state auto switch, grommet, with light, 3-wire type (NPN), lateral entry, lead wire 3 m, applied voltage: DC5V, 12V, 24V (DC4.5 to 28V)
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

Reviews

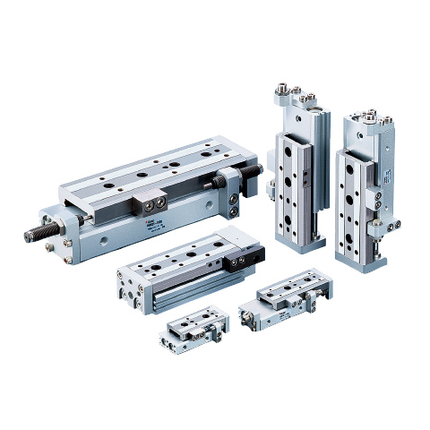

Name: SMC MXQ Series Air Slide Table, Guided Cylinder, MXQ6-30-M9NL
