Description

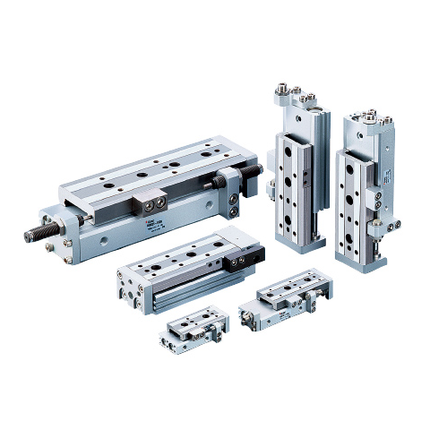

SMC MXQ6L-10-M9B — MXQ Series Air Slide Table, Guided Cylinder. This code specifies 6mm bore, 10mm stroke, double acting, built-in magnet.
Specification — MXQ6L-10-M9B
| Bore |
6mm |
| Stroke |
10mm |
| Magnet |
Built-in magnet |
| Mounting |
Basic |
| Port size |
M5X0.8 |
| Fluid |
Air |
| Action |
Double acting |
| Min. operating pressure |
0.15 MPa |
| Max. operating pressure |
0.7 MPa |
| Proof pressure |
1.05 MPa |
| Fluid temp. min |
-10 °C |
| Fluid temp. max |
60 °C |
| Ambient temp. min |
-10 °C |
| Ambient temp. max |
60 °C |
| Piston speed min |
50 mm/s |
| Piston speed max |
500 mm/s |
| Weight |
114 g |
Specification values above are for model code MXQ6L-10-M9B as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
About the SMC MXQ series
- Guide rail and table integrated
- High rigidity and high accuracy by adopting a circular linear guide
Supply from Korea
Genuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.
