Name: SMC MXQ Series Air Slide Table, Guided Cylinder, MXQ6L-10AS-M9BL
Brand: SMC
SKU: MXQ6L-10AS-M9BL
Price: 212.77 USD
Availability: InStock

SMC MXQ Series Air Slide Table, Guided Cylinder, MXQ6L-10AS-M9BL

VendorSMC

Description

OVERVIEW

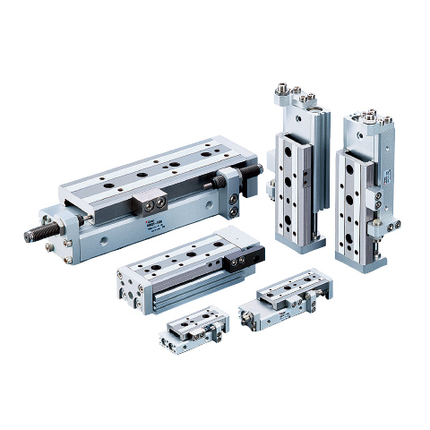

The MXQ precision slide is ideal for applications requiring closely held parallelism and perpendicular specifications. The table and bearing guide are integrated into one precisely machined part made of hardened stainless steel. This minimizes tolerance stack-up associated with multiple part assemblies, and affords height tolerances of +/-0.05mm. The bearing is a recirculating linear guide in a stainless steel housing.

Guide rail and table integrated
High rigidity and high accuracy by adopting a circular linear guide

Specification item	model symbol	Specification information
tube inner diameter	6	tube inner diameter 6mm
Types of port screws	-	M screw, Rc
symmetrical	L	symmetrical
cylinder stroke	10	cylinder stroke 10mm
adjustment options	AS	Forward diagnosis adjustment unit
function options	-	standard
auto switch	M9BL	Solid-state auto switch, grommet, with light, 2-wire type, lateral entry, lead wire 3 m, applied voltage: DC24V (DC10 to 28V)
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

Specification — MXQ6L-10AS-M9BL

Bore	6mm
Stroke	10mm
Magnet	Built-in magnet
Mounting	Basic
Port size	M5X0.8
Fluid	Air
Action	Double acting
Min. operating pressure	0.15 MPa
Max. operating pressure	0.7 MPa
Proof pressure	1.05 MPa
Fluid temp. min	-10 °C
Fluid temp. max	60 °C
Ambient temp. min	-10 °C
Ambient temp. max	60 °C
Piston speed min	50 mm/s
Piston speed max	500 mm/s
Weight	182 g

Specification values above are for model code MXQ6L-10AS-M9BL as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.

Product form

OVERVIEW The MXQ precision slide is ideal for applications requiring closely held parallelism and perpendicular specifications. The table and bearing... Read more

SKU: MXQ6L-10AS-M9BL

$212.77 Excl. VAT

Ships within 5–10 business days

Ships from South Korea

Export packing available

Worldwide shipping

Secure payments Paypal

Description

OVERVIEW

The MXQ precision slide is ideal for applications requiring closely held parallelism and perpendicular specifications. The table and bearing guide are integrated into one precisely machined part made of hardened stainless steel. This minimizes tolerance stack-up associated with multiple part assemblies, and affords height tolerances of +/-0.05mm. The bearing is a recirculating linear guide in a stainless steel housing.

Guide rail and table integrated
High rigidity and high accuracy by adopting a circular linear guide

Specification item	model symbol	Specification information
tube inner diameter	6	tube inner diameter 6mm
Types of port screws	-	M screw, Rc
symmetrical	L	symmetrical
cylinder stroke	10	cylinder stroke 10mm
adjustment options	AS	Forward diagnosis adjustment unit
function options	-	standard
auto switch	M9BL	Solid-state auto switch, grommet, with light, 2-wire type, lateral entry, lead wire 3 m, applied voltage: DC24V (DC10 to 28V)
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

Specification — MXQ6L-10AS-M9BL

Bore	6mm
Stroke	10mm
Magnet	Built-in magnet
Mounting	Basic
Port size	M5X0.8
Fluid	Air
Action	Double acting
Min. operating pressure	0.15 MPa
Max. operating pressure	0.7 MPa
Proof pressure	1.05 MPa
Fluid temp. min	-10 °C
Fluid temp. max	60 °C
Ambient temp. min	-10 °C
Ambient temp. max	60 °C
Piston speed min	50 mm/s
Piston speed max	500 mm/s
Weight	182 g

Specification values above are for model code MXQ6L-10AS-M9BL as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
